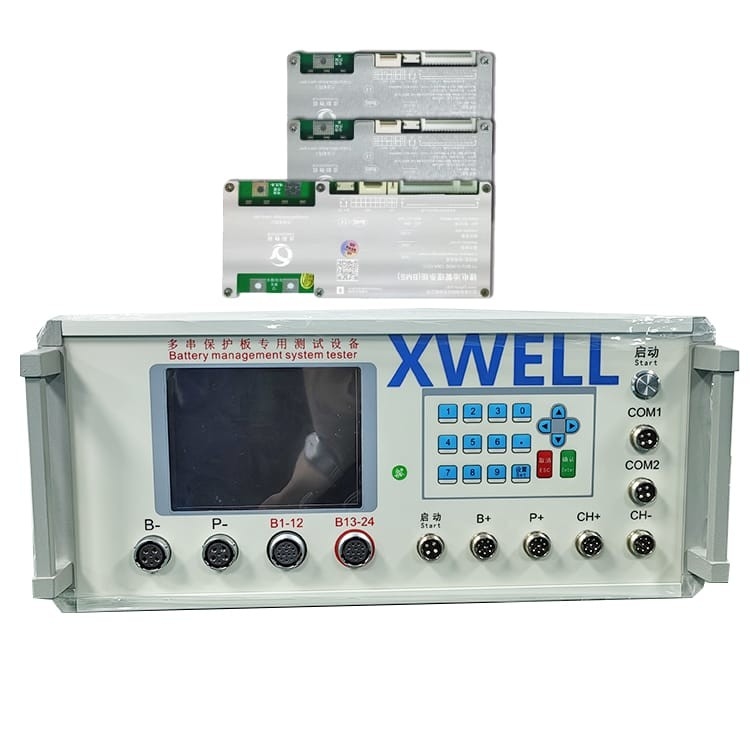

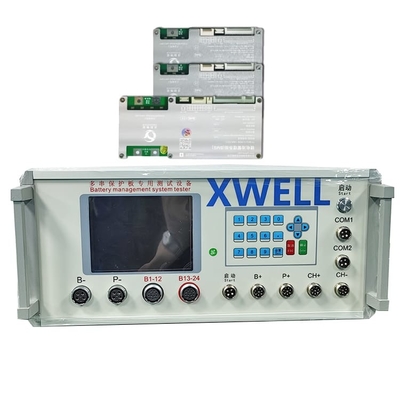

1-24 Series Lithium Battery Pack BMS Tester 1000W Easy Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Feature: | Easy Operation | Color: | Picture |
|---|---|---|---|
| Application: | BMS/PCB | Voltage: | 220VAC |
| Maximum Power: | 1000W | Estable Type: | LiFePO4, LiCoO3 |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | ||
| Highlight: | Lithium Battery Pack BMS Tester,1000W Lithium Battery Pack BMS Tester |
||
Product Description
High Quality 1-24 Series Lithium Battery Pack BMS Tester
Description
PBTS24-120 can detect the function of the lithium battery protection board and various performance indicators. It is especially suitable for factory inspections for mass production.
*The number of series is optional from 1-24
*Various protection and recovery function tests
*Can choose the number of sections to be tested according to your own needs
*Test results can be automatically saved
Features:
1, Short circuit protection test
2, Self consumption of each PCB board test
3, Equalizing current and balance voltage test
Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-6 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
Detail
