1-24S BMS Tester Lifepo4 Battery BMS System Electric Vehicle PCB Card Testing Machine For Battery Pack
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
1-24S BMS Tester Lifepo4 Battery BMS System Electric Vehicle PCB Card Testing Machine For Battery Pack
  • name

1-24S BMS Tester Lifepo4 Battery BMS System Electric Vehicle PCB Card Testing Machine For Battery Pack

Brand Name: XWELL
Model Number: PBTS24-120
MOQ: 1pcs
Price: USD 4000 - 6500 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Condition:
New
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Voltage:
220VAC
Maximum Power:
1000W
Estable Type:
LiFePO4, LiCoO3
Reference Voltage:
Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V)
Over Discharge Protection:
0-5V ±5mv
Over Discharge Protection Released:
0-5V ±5mv
Supply Ability:
100 pcs per month
Highlight:

Lifepo4 Battery BMS Tester

,

BMS Tester For Battery Pack

Product Description

1-24S BMS Tester Lifepo4 Battery BMS System Electric Vehicle BMS PCB Card Testing Machine For Battery Pack



Product Description



electric battery operated three wheel vehicle/lithium ion battery for electric vehicle/battery management system bms for e-bike TESTER

This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~32 series power battery protection board tester



Application:
1~24/32 series power battery protection board tester multi-function PCB board testing system mainly faces the PCB board manufacturer and power battery pack manufacturer for detection of battery protecting board.

Specification

Parameter
Test Range
Accuracy
Number of Testing Series
1-6 series optional

Voltage Reference
Ternary Battery:3.8V
Lithium Battery: 3V

Overcharge/Overdischarge Protection Voltage
0.5-5V
±5mV
Overcharge/Overdischarge Voltage
0.5-5V
±5mV
Overcharge Protection Current
0-50A
±0.1A
Over-discharge Protection Current
0-120A
±0.1A
Equilibrium Open Voltage
0.5-5V
±5mV
Equilibrium Real-time Current
0-200mA
±1mA
Overcurrent Protection Delay
0-15S
±1mS
Overcharge/Overdischarge Protection Delay
0-20S
±1mS
Single-section Self-consuming Power
0-500uA
±1uA
Internal Loop Resistance
0-500mΩ
±1mΩ
Short Circuit Protection (more than 6 series)
0-9999us
±1us
Supply Voltage
220VAC

Maximum Power
600W

Current Level
60-120A

Machine Size
420*430*220mm



Detail

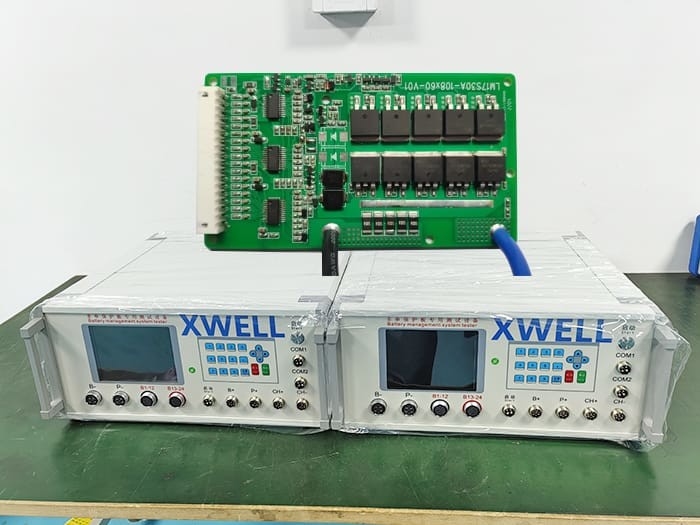

1-24S BMS Tester Lifepo4 Battery BMS System Electric Vehicle PCB Card Testing Machine For Battery Pack 0
1-24S BMS Tester Lifepo4 Battery BMS System Electric Vehicle PCB Card Testing Machine For Battery Pack 1
