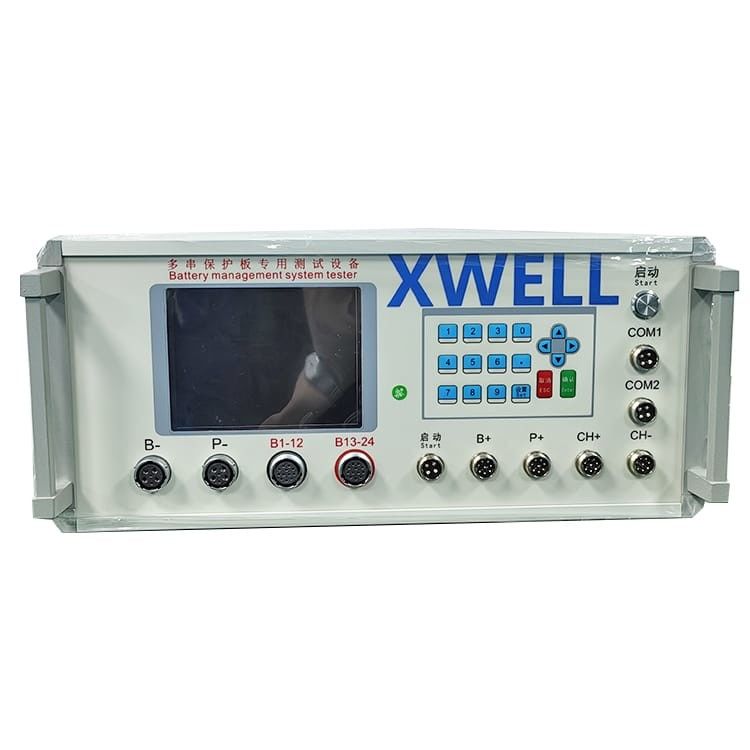

LiCoO3 Battery Pack Test Equipment For Mobile Phone Battery Performance Testing
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Condition: | New | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Packaging Details: | Ebike Battery Pack Pcb Tester | Voltage: | 220VAC |
| Maximum Power: | 1000W | Estable Type: | LiFePO4, LiCoO3 |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | Machine Size: | 420*430*220mm |
| Highlight: | LiCoO3 Battery Pack Test Equipment,Mobile Phone Battery Pack Test Equipment |
||
Product Description
1-24 Series Battery Pack Test Equipment Used For Mobile Phone Battery Performance Testing
Main performance:
Wait for test bit:It can support two panels at the same time to improve the test efficiency. Guide rail tightening:Fix the panel to prevent the position of each test panel from being different. Number of repeated tests:The test equipment can repeat the test to prevent the test fixture from not contacting well and improve the accuracy of the test. Test pass mark + test error mark: Support the marking of test qualified and test error in an independent position to improve the statistical rate after the board test is completed. Test panel statistics:It can monitor the test output and qualification rate of the equipment in real time.
Function introduction:
PBTS(A)The automatic protection board tester includes three parts: board loading machine, test automation platform and board receiving machine to realize the integrated automatic unmanned test process of automatic board loading, automatic test, marking after test and automatic board receiving
Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-6 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
