1000W Li Ion Lithium Battery Pack BMS Testing Machine For Protecting Board
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Voltage Reference: | Ternary Battery:3.8V ; Lithium Battery: 3V | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | PBTS24-120 | Voltage: | 220VAC |
| Maximum Power: | 1000W | Estable Type: | LiFePO4, LiCoO3 |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | Machine Size: | 420*430*220mm |
| Highlight: | Li Ion Battery BMS Testing Machine,1000W Battery Pack BMS Testing Machine |
||
Product Description

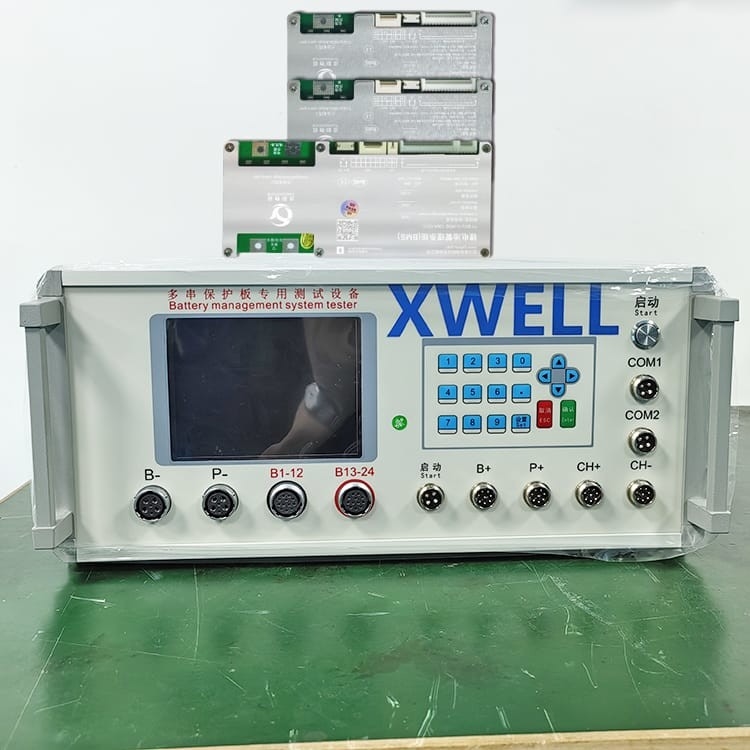

24 Series Li Ion Lithium Battery Pack BMS Tester Testing Machine for Protecting Board
Features:
This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester.
*The number of series is optional from 1-24
*Various protection and recovery function tests
*Can choose the number of sections to be tested according to your own needs
*Test results can be automatically saved
*Various protection and recovery function tests
*Can choose the number of sections to be tested according to your own needs
*Test results can be automatically saved
Product Application
electric vehicle battery pack, street lamp battery pack, automobile battery module, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, notebook battery pack and power tool battery pack.
Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-6 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
