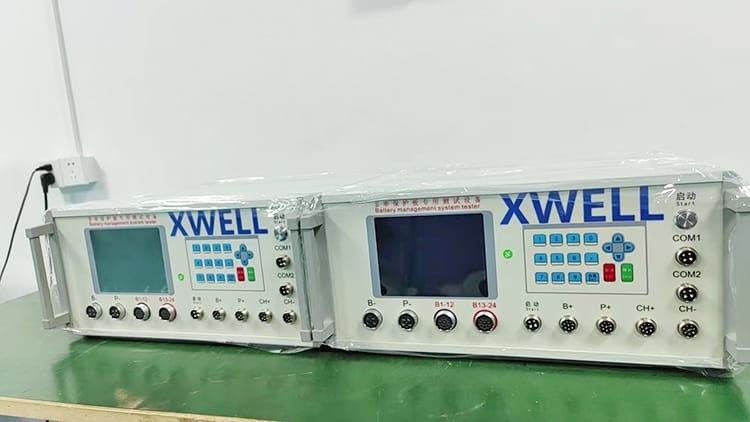

Lithium Ion Battery 24S BMS Testing Machine For Lifepo4 Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Condition: | New | Weight (KG): | 45 |
|---|---|---|---|
| Marketing Type: | New Product 2023 | Voltage: | 220VAC |
| Maximum Power: | 1000W | Estable Type: | LiFePO4, LiCoO3 |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | Machine Size: | 420*430*220mm |
| Highlight: | Lithium Ion Battery BMS Testing Machine,Lifepo4 Battery BMS Testing Machine |
||
Product Description
Lithium Ion Battery 24S Bms Testing Machine For Lifepo4 Battery
Features
It is mainly used to detect whether the functional indicators of the lithium battery protection board are within the parameter range, so as to provide a set of detection standards for the staff. It is mainly used for testing power battery protection board of protection board manufacturer and power battery manufacturer.
Performance Routine Test Items:Overcharge protection voltage, overcharge recovery voltage, over discharge protection voltage, over discharge recovery voltage, over-current protection, over-current delay performance test, short-term protection performance test, total self consumption current of protection board, etc.
Special Test Items:Single section self consumption test (refers to the true and accurate self consumption of each section).Types of Protection Boards Supporting Testing:LiFePO4, LiCoO3, LiMn2O4,ect.
Product Application
electric vehicle battery pack, street lamp battery pack, automobile battery module, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, notebook battery pack and power tool battery pack.
Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-6 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
