Battery Cell Sorting Machine

Compact Battery Cell Sorting Machine Automatic Prismatic Internal Resistance Battery Voltage Sorter

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Compact Battery Cell Sorting Machine Automatic Prismatic Internal Resistance Battery Voltage Sorter

Brand Name:	XWELL
Model Number:	XW-BPS08
MOQ:	1pcs
Price:	USD 10000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Place Of Origin:

Guangdong, China

Guangdong, China:

100 Set/Sets Per Month

Machinery Function:

Sorting

Input Voltage:

AC220V/50Hz

Power:

<1000W

Efficiency:

600 Pcs/h

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

Compact Battery Cell Sorting Machine

Automatic Prismatic Battery Cell Sorting Machine

Product Description

Automatic Prismatic Battery Internal Resistance Tester Battery Voltage Sorter Sorting Machine For Battery Cell

Automatic Battery Sorting Machine

1.Compact and reasonable equipment structure, beautifulappearance, small volume.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data

Description

XWELL battery sorter, is a sorting equipment, for 18650 OR 22700 and similar cells by testing Internal
Resistance & Voltage.

For other battery models, contact o get the customization lead time.

One manpower to fully utilize this machine, 25Kg-lightweight, stable and at 4Kpcs/hour.

Customization

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

3. Sort by cell's voltage and impedance up to 8 groups.

4. Automatic sorting control.

5. Fast sorting speed

6. Easy to refill cells during the process.

7. Wheels design, easy to move the machine to any operating place.

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

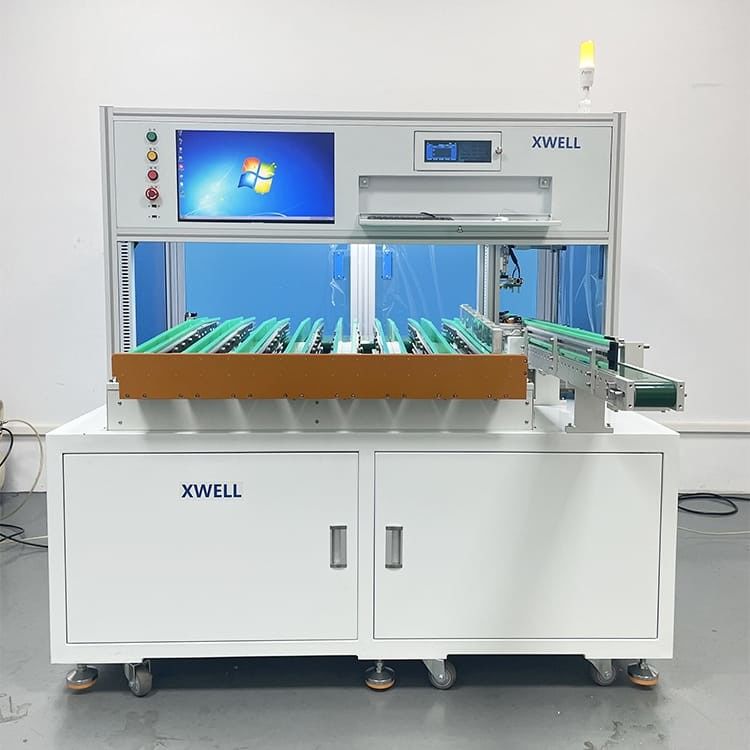

Prismatic Battery Cell Sorting Machine Details

Compact Battery Cell Sorting Machine Automatic Prismatic Internal Resistance Battery Voltage Sorter 0

Compact Battery Cell Sorting Machine Automatic Prismatic Internal Resistance Battery Voltage Sorter 1
