5 Channel Battery Cell Sorting Machine For 32130 32140 Voltage Resistance Testing

Brand Name:	XWELL
Model Number:	XW-BS05
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

XW-BS05

Channel:

Factory Environment:

No Pollution And No Strong Electromagnetic Interference

Power:

<1000W

Test Parameter:

AC Internal Resistance, DC Voltage

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

32140 Testing Cell Sorting Machine

32130 Battery Cell Sorting Machine

5 Channel Cell Sorter Machine

Product Description

5 Channel Battery Cell Sorting Machine For 32130 32140 Voltage And Resistance Testing

The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to different channels according to the setting.

Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balanced.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

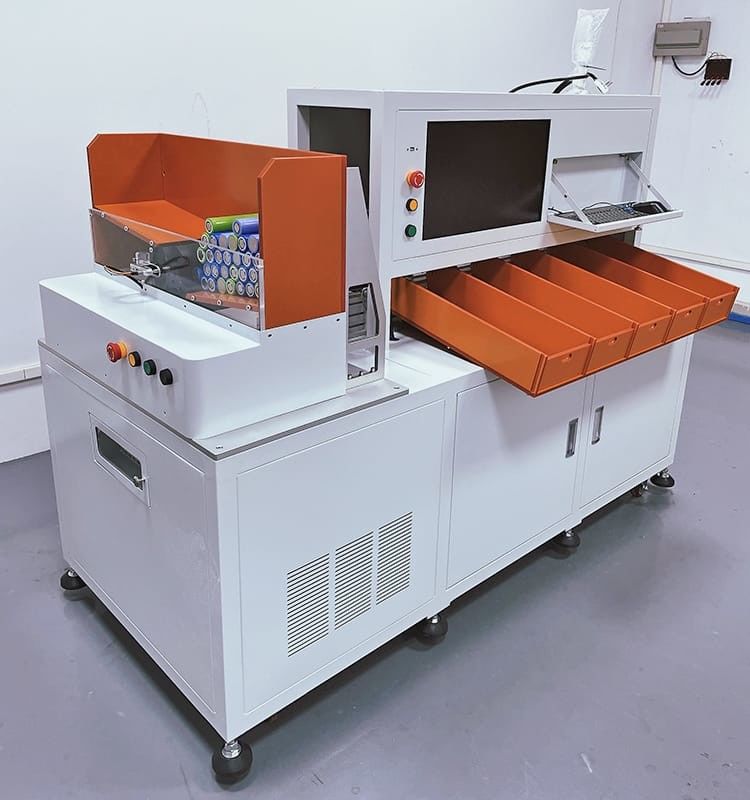

Cell Sorting Machine Details

5 Channel Battery Cell Sorting Machine For 32130 32140 Voltage Resistance Testing 0

5 Channel Battery Cell Sorting Machine For 32130 32140 Voltage Resistance Testing 1
