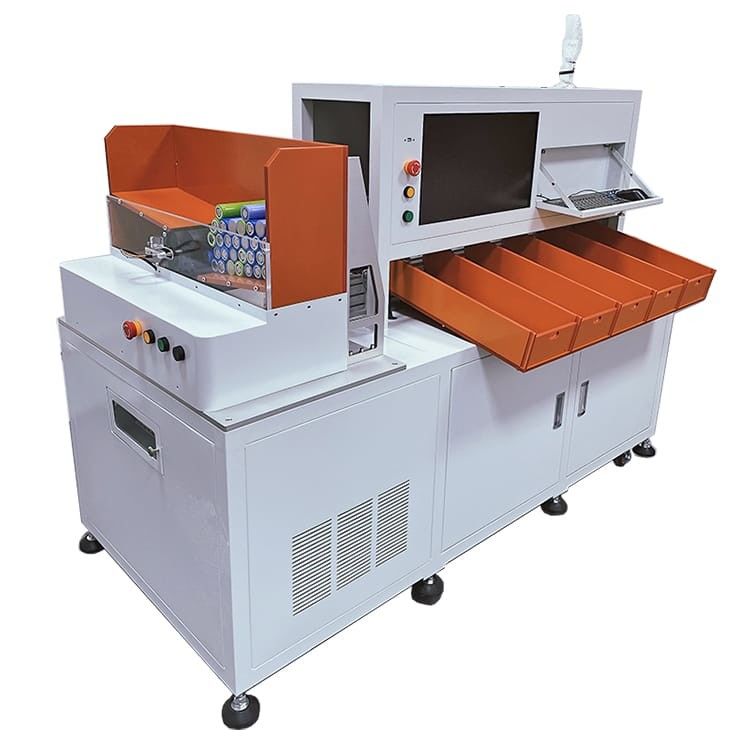

5 Channel Automatic Cylindrical Battery Sorter 32130 2140 33130 Lithium Cell Grading
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Efficiency: | 3500-4000pcs/h |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | Automatic Cylindrical Battery Sorter,5 Channel Cylindrical Battery Sorter,Lithium Cell Sorting Grading Machine |
||
Product Description
5 Channel Automatic Cylindrical Battery Sorter 32130 2140 33130 Lithium Cell Sorting Grading Machine
Automatic Battery Testing And Sorting Machine
The 312030 battery sorting test system is suitable for the 32130 battery cell voltage/resistance sorting test and internal use in the battery factory. The electrical control part of the sorting system adopts modular design, with high integration, good versatility and convenient maintenance; the actuator adopts servo motor control, which has high precision and good reliability.The number of receiving slots of the device is 5 slots, voltage and internal resistance can be set arbitrarily, and the sorting efficiency is high. The built-in high-precision internal resistance and voltage automatic test system can accurately power the battery according to the set internal resistance and voltage value, and enter the designated gear. The equipment adopts box-type feeding, the robot automatically divides the material, and the personnel manually takes the material. Realize the automatic sorting of 32130 cells. The equipment can test about 3500-4000 batteries per hour, with simple structure design and stable performance. To date, it is the most cost-effective sorting equipment on the market.
Test items
A. 32130 cylindrical battery voltage test
B. 32130 cylindrical battery internal resistance test
C. Based on the voltage and internal resistance test, the 32130 cylindrical battery is divided and the specification is set.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
