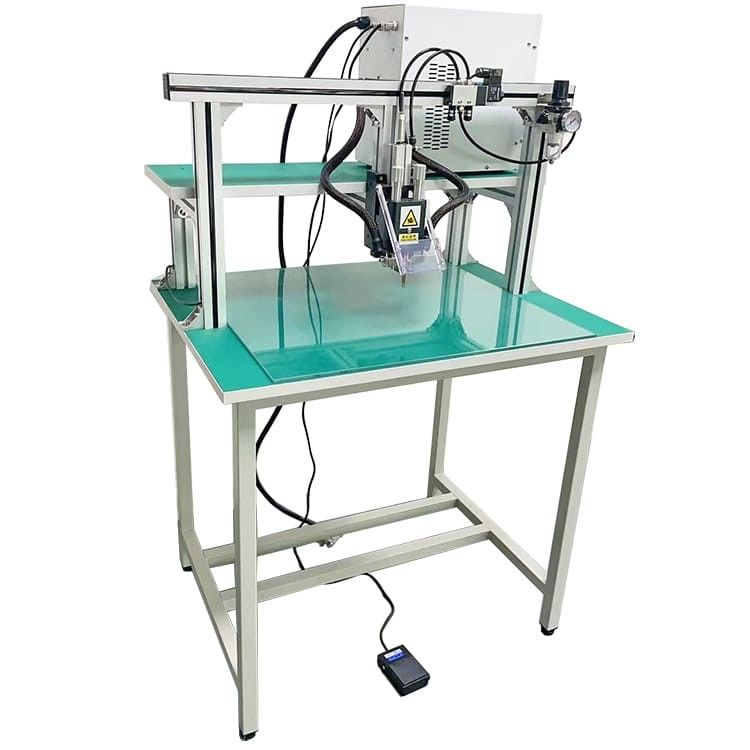

18650 Lithium Battery Gantry Spot Welder For Cylindrical Battery Pack Welding
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-GAC25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Max. Welding Thickness: | 0.3mm | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| Advantage: | Cost Effective | Brand Name: | XWELL |
| Z Axis Travel: | 50 Mm | Suitable Cell: | Cylindrical Cell, 18650, 26650, 32650... |
| Battery Number: | 500-600 Cells | Max Welding Current: | 5000A |
| Voltage Input: | 220V And 380V | Power: | 4 KW |
| Highlight: | 18650 Battery Gantry Spot Welder,Cylindrical Battery Gantry Spot Welder,18650 Cylindrical Battery Welding Machine |
||
Product Description
Gantry Spot Welding Machine 18650 Lithium Battery Spot Welder For Cylindrical Battery Pack Welding
Feature
1 ,Imported energy storage power, welding voltage lockout technology to prevent network pressure fluctuations in the welding current. 2 ,Welding adjustable pulse width, small spatter, weld discoloration. 3 ,Discharge of imported IGBT module, enabling single-pulse and double pulse with multi-pulse welding. 4 ,Advanced technology: the continuous exchange with the international advanced inverter technology improvement and innovation. Dual pulse welding, welding and continuous pre-welding. Pre-solder oxide removal, remove debris, reducing the spark,, Continued solder joint cosmetics firm, no black, solder joints uniform size burr, does not affect the appearance of the product. 5 ,Adjustment easy to use: solder pin spacing is adjustable, suitable for fine components welding, alignment accuracy, high yield.
Scope:
1 ,This professional welder power battery cells (thick slices 0.5mm or less) welding design. 2 ,18650 nickel belt suitable for welding, soldering connection battery, button cell welding, with guide wire between the nickel-metal hydride batteries and lithium batteries, nickel plate aluminum alloy nickel composite tape, appliance parts and welding wire, light bulbs foot welding, welding mobile power and cell phone battery. Welder MPU microcomputer control, pneumatically operated, small dimensions, with a protection circuit and alarm display, welding preheat wave, voltage fluctuation automatic compensation function to ensure stable energy output, high joint quality, easy maintenance, can improve the welding effectiveness. Suitable for high-volume production line.
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Table size | 800 * 600mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300 - 500 pcs |
| Welding speed | Max 0.35s/spot, 1000 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Controller | Microcomputer |
| Driver mode | Pneumatic |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 4000 W |
| Size | 800L * 600W * 1530Hmm |
| Weight | 100kg |
Product Sturcture
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
