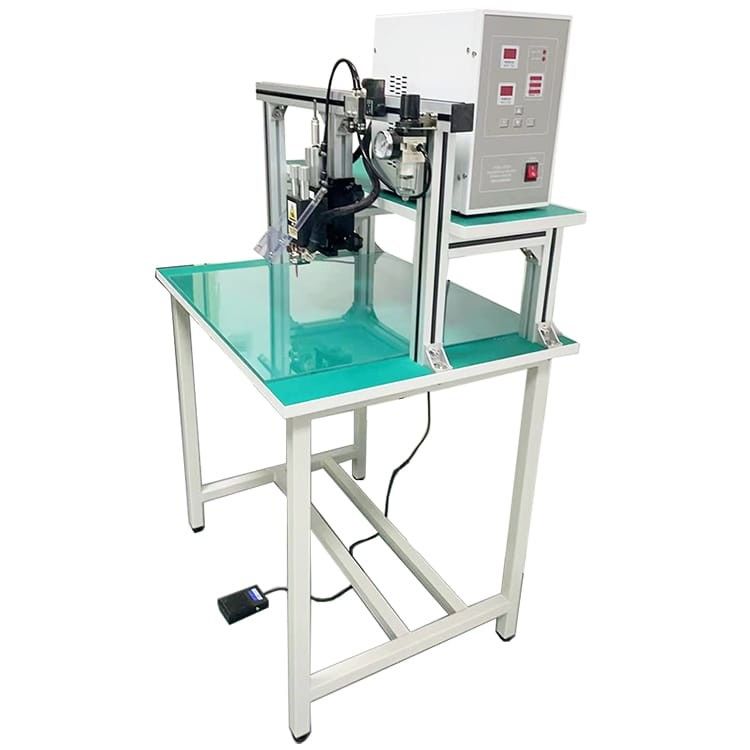

Automatic Easy Operation Spot Welder Tab Lithium Battery Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-GAC25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machinery Test Report: | Provided | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Weight (KG): | 120 KG | Brand Name: | XWELL |
| Z Axis Travel: | 50 Mm | Suitable Cell: | Cylindrical Cell, 18650, 26650, 32650... |
| Battery Number: | 500-600 Cells | Max Welding Current: | 5000A |
| Voltage Input: | 220V And 380V | Power: | 4 KW |
| Highlight: | Automatic Spot Welder,Tab Lithium Battery Spot Welder,Automatic Battery Spot Welding Machine |
||
Product Description
Factory Wholesale High Quality Automatic Easy Operation Spot Welder Tab Lithium Battery Spot Welding Machine
Features
The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.
The spot welder is widely used, and the welding transformer has a small volume and a large output energy.
Product features
1. Induct load voltage and control constant current by feedback to realize high-quality welding. 2. The power on mode of pre heat and main heat shall be preheated before welding to ensure stable welding quality. 3. Maintain the continuity of energy density, shorten the welding time, and reduce the deformation and discoloration of base metal (the welding time is controlled in microsecond unit and the mode of continuous output). 4. Easy to change from low current to high current, suitable for precision welding. 5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not. It is suitable for welding automation instruments. 6. The welding current increases with the power on time to ensure the welding results.
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Table size | 800 * 600mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300 - 500 pcs |
| Welding speed | Max 0.35s/spot, 1000 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Controller | Microcomputer |
| Driver mode | Pneumatic |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 4000 W |
| Size | 800L * 600W * 1530Hmm |
| Weight | 100kg |
Product Sturcture
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
