Battery Pack Welding Machine

18650 21700 Cell Gantry Manual Battery Pack Electrode Welding Machine Spot Welder

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

18650 21700 Cell Gantry Manual Battery Pack Electrode Welding Machine Spot Welder

Brand Name:	XWELL
Model Number:	XW-GAC25
MOQ:	1pcs
Price:	USD 1500-5000/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Core Components:

PLC, Engine, Motor

Max. Welding Thickness:

0.3mm

Voltage:

220v/380V

Brand Name:

XWELL

Z Axis Travel:

50 Mm

Suitable Cell:

Cylindrical Cell, 18650, 26650, 32650...

Battery Number:

500-600 Cells

Max Welding Current:

5000A

Voltage Input:

220V And 380V

Power:

4 KW

Supply Ability:

100pcs per month

Highlight:

Battery Pack Electrode Welding Machine

21700 Cell Electrode Welding Machine

Cell Gantry Type Spot Welder

Product Description

18650 21700 Cell Lithium Ion Gantry Type Manual Battery Pack Electrode Welding Machine Spot Welder Equipment

High-performance energy storage spot welder

The welding pulse width is adjustable, the welding spatter is small, and the welding spot does not change color. It has a 5-digit counter to count the number of successful welding, and can also set a counting alarm to remind the repair of the welding needle. With fault self-diagnosis function, and display the corresponding fault point, easy to maintain.

Welding time can be adjusted precisely

Adjustable welding time: 10ms-200ms, accuracy: 0.1ms

Welding voltage locking technology

The welding voltage locking technology prevents the fluctuation of the network voltage from affecting the welding current. The welding pulse width is adjustable, the welding spatter is small, and the welding spot does not change color. It can realize single-pulse, double-pulse and multi-pulse welding. It has two-stage current monitoring and comparison function, and the current is abnormal. The sound and light alarm effectively prevents the occurrence of false welding and false welding.

Product Specification

Item	Parameter
Welder	5000A/8000A inverter spot welding power supply(optional)
Welding head quantity	1
Table size	800 * 600mm
Cell type	18650, 21700, 32650… all types of cylinderial cells
Total cell support	300 - 500 pcs
Welding speed	Max 0.35s/spot, 1000 pcs/h
Cell link material	Nickel, Nickel-Plated Steel
Welding max thickness	0.3mm
Max parameter groups	99 groups
Controller	Microcomputer
Driver mode	Pneumatic
Cooling method	By air or water (optional)
Air pressure	0.4-0.6 Mpa
Power voltage	Single phase 220V/Three phase 380V
Power	4000 W
Size	800L * 600W * 1530Hmm
Weight	100kg

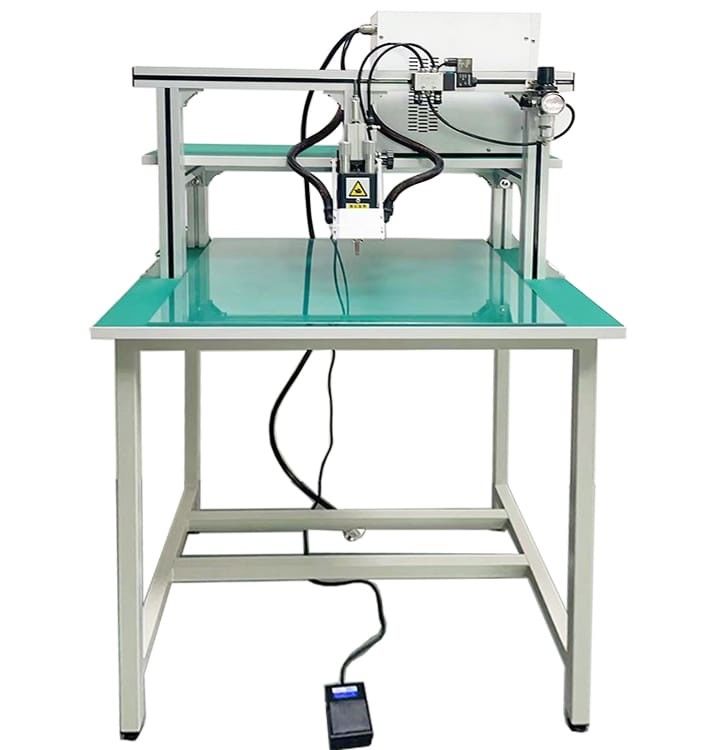

Product Sturcture

18650 21700 Cell Gantry Manual Battery Pack Electrode Welding Machine Spot Welder 0

Battery Pack Welding Samples

18650 21700 Cell Gantry Manual Battery Pack Electrode Welding Machine Spot Welder 1
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
