Battery Cell Sorting Machine

21 Channel Automatic Cylindrical Cell Sorting Machine Lithium Ion Battery Testing

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

21 Channel Automatic Cylindrical Cell Sorting Machine Lithium Ion Battery Testing

Brand Name:	XWELL
Model Number:	XW-BS21
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Core Components:

PLC, Motor, Gear

Applicable Industries:

Energy & Mining, Other

After-sales Service Provided:

Video Technical Support, Online Support

Packaging Details:

Wooden

Warranty:

1 Year

Efficiency:

3500-4000pcs/h

Power:

<1000W

Test Parameter:

AC Internal Resistance, DC Voltage

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

21 Channel Automatic Cell Sorting Machine

1000W Cell Sorting Machine

Automatic Collecting Battery Cell Sorting Machine

Product Description

21 Channel Automatic Cylindrical Cell Lithium Ion Battery Testing Sorter Sorting Machine Equipment

Introduction

The integrated sorting and collecting machine is to add the automatic collecting function on the basis of the sorting machine, which greatly saves the manual collecting time.

Performance Characteristics

1. The equipment has compact and reasonable structure, beautiful appearance and small occupied space.

2. The equipment is easy to operate and can be easily mastered by workers without professional training.

3. The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and receiving. PC is responsible for battery test instrument data collection and voltage internal resistance level sorting. The operation is simple and easy to learn, high work efficiency, labor cost saving and good product performance.

4. The equipment material adopts high-quality thick cold-rolled sheet metal and aluminum profile frame.

5. The equipment is equipped with universal movable casters, which can move easily when the equipment is displaced.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	21 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	4500 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	4500 pcs/h

Cell Sorting Machine Details

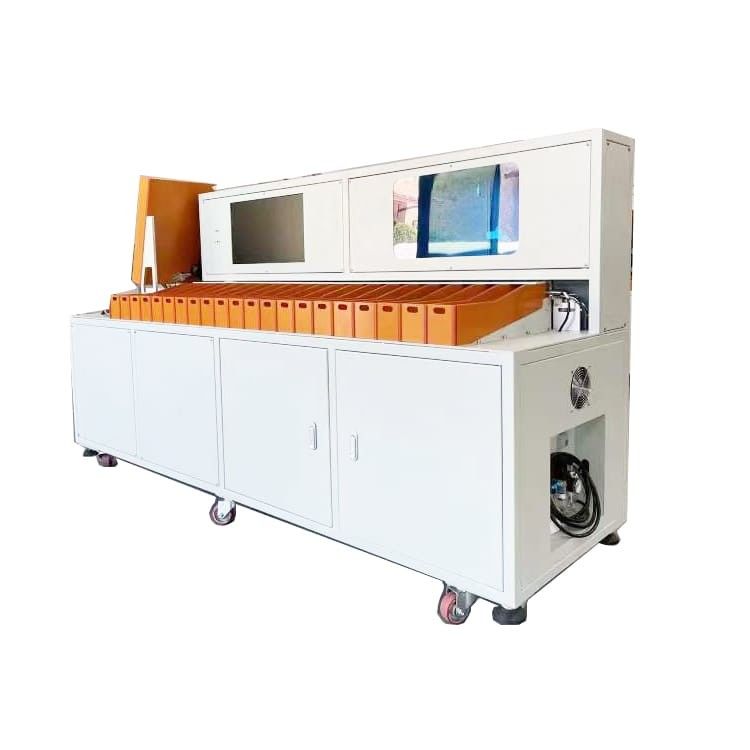

21 Channel Automatic Cylindrical Cell Sorting Machine Lithium Ion Battery Testing 0

21 Channel Automatic Cylindrical Cell Sorting Machine Lithium Ion Battery Testing 1
