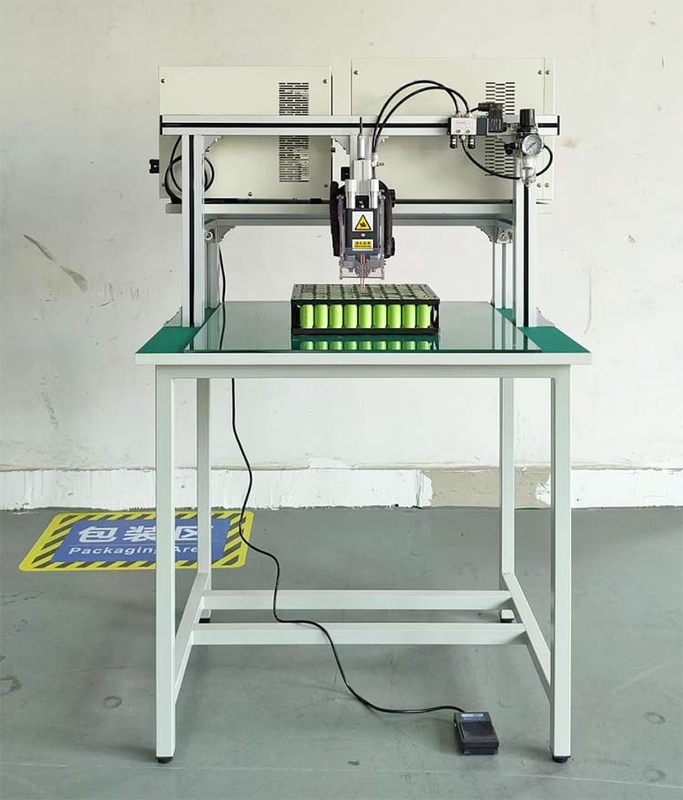

DC Gantry Battery Cell Spot Welder , Lithium Cylindrical Battery Pack Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Z Axis Travel: | 50 Mm |
| Suitable Cell: | Cylindrical Cell, 18650, 26650, 32650... | Battery Number: | 500-600 Cells |
| Welding Power Supply: | 5000A DC Inverter Welding Machine Power Supply | Max Welding Current: | 5000A |
| Voltage Input: | 220V And 380V | Power: | 4 KW |
| Highlight: | 32650 Battery Cell Spot Welder,380V Battery Pack Welder,DC Gantry Battery Pack Welding Machine |
||
Product Description
Battery Cell Spot Welding Machine Lithium Cylindrical Battery Pack Welder DC Gantry Spot Welding Machine
It is applicable to cylindrical cell modules with a height of 70mm and below, such as 18650, 18500, 21700, 26650,1 4500, especially lithium battery modules such as NB / Power Tool / Gardening Tool / High Power / Energy Storage Power Station / Electric Balance Vehicle / Electric Motorcycle / Electric Vehicle, which can be used together with automatic production lines.
Application Field
Connection between photovoltaic, power battery pack, lithium nickel hydride battery and nickel sheet alloy sheet aluminum nickel composite belt, connection between wire and guide sheet, welding of household appliance parts and wires, connection of hardware accessories, copper silver products, stainless steel peripheral joints, bulb foot welding, electronic parts, welding of various high and low conductive metal alloys, etc.
Gantry Spot Welding Machine Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
The machine suitable for below product:
- Power Storage Battery
- Power Module Battery
- Electric Tool Battery
- Photovoltaic Energy Storage Battery
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Table size | 800 * 600mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300 - 500 pcs |
| Welding speed | Max 0.35s/spot, 1000 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Controller | Microcomputer |
| Driver mode | Pneumatic |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 4000 W |
| Size | 800L * 600W * 1530Hmm |
| Weight | 100kg |
Product Sturcture
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
