Battery Cell Sticking Machine

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper

Brand Name:	XWELL
Model Number:	MD-BSM
MOQ:	1pcs
Price:	USD 6500/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Commodity, Machinery & Hardware

Place Of Origin:

GuangDong, China

Video Outgoing-inspection:

Provided

Paper Size:

100mm Paper Total Thickness 0.3mm

Air Pressure:

0.4-0.8Mpa

Charging Pattern:

Put In Batteries Disposable Put In 500PCS

Size(L XW X H):

1000x700x1630mm

Surfact Mat Material:

Barley Paper Or PVC

Supply Ability:

100 pcs per month

Highlight:

Cylindrical Battery Cell Sticking Machine

100mm paper Battery Cell Sticking Machine

Battery Cell Insulation Paper Sticking Machine

Product Description

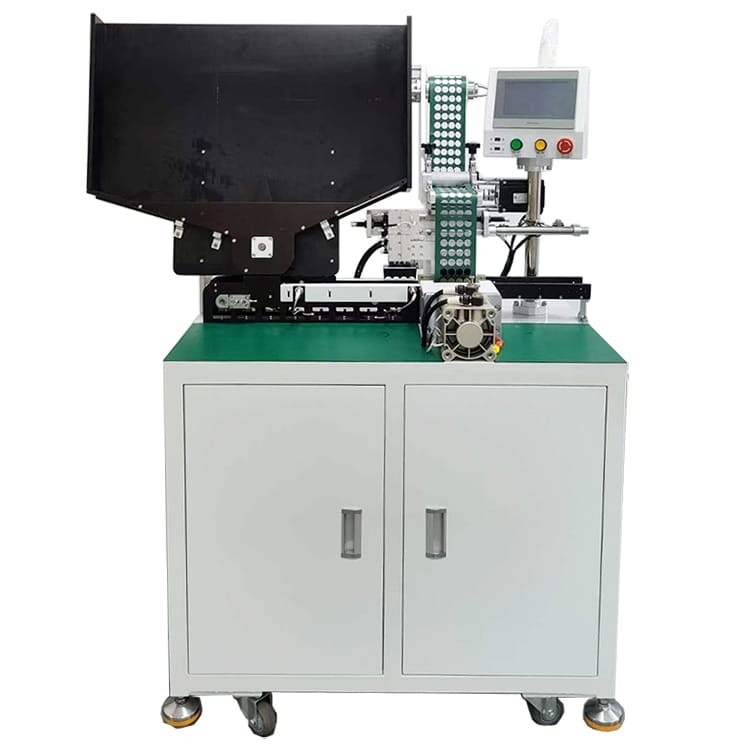

18650 21700 Cylindrical Battery Cell Insulation Paper Sticking Machine

Description

MD-BSM is an automatic equipment for pasting barley paper on cylindrical batteries. This equipment realizes the function of sticking highland barley paper to qualified batteries.

Features

This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.

1. Stickers pasted stable, consistent, and long lasting.

2. Automatic failure alarm.

3. Easy to program, adjust, and opertate for new hands.

4. High Efficiency, fully automatic, saving labor cost.

Battery Sticking Machine Specification

oltage/Power	Single-phase 220V,50Hz, 1500W
Air Pressure	0.4-0.8Mpa
Material Specfication	Barley paper
Maximum Breadth	100mm paper Total thickness:0.3mm
Charging Pattern	Put in Batteries disposable put in 500PCS
Production Efficiency	4800pcs/hour, single pad 4pcs
Size(L xW x H)	1000x700x1630mm
Surfact Mat Material	Barley paper or PVC
Control Device	7 inck Touch Screen PLC programming unit and stepper motor

Battery Sticking Machine Parts

No.	Spare Parts	Brand
1	Air Cylinder	SMC,CKD
2	Solenoid Valve	SMC,Airtac
3	Linear Guide Rail	TPI
4	Electric Relay	OMRON
5	PLC	TouchWin
6	Inductorium	OMRON,SUNX
7	Stepper Motor	Lesev/Inovance
8	Servo Motor	Fuji/Panasonic
9	Support Base	NSK
10	Lead Screw	HIWIN

Battery sticking machine details

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper 0

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper 1

Battery Sticking Machine Samples

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper 2

Battery Sticking Machine Package

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper 3

18650 21700 Cylindrical Battery Cell Sticking Machine Insulation Paper 4

Battery Sticking Machine delivery time

15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
