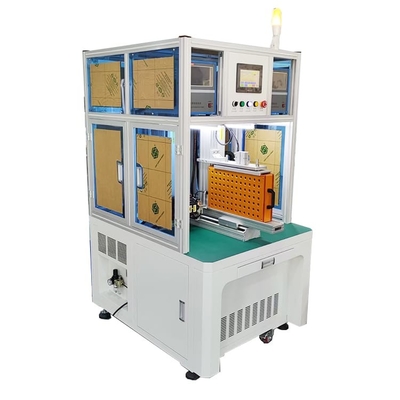

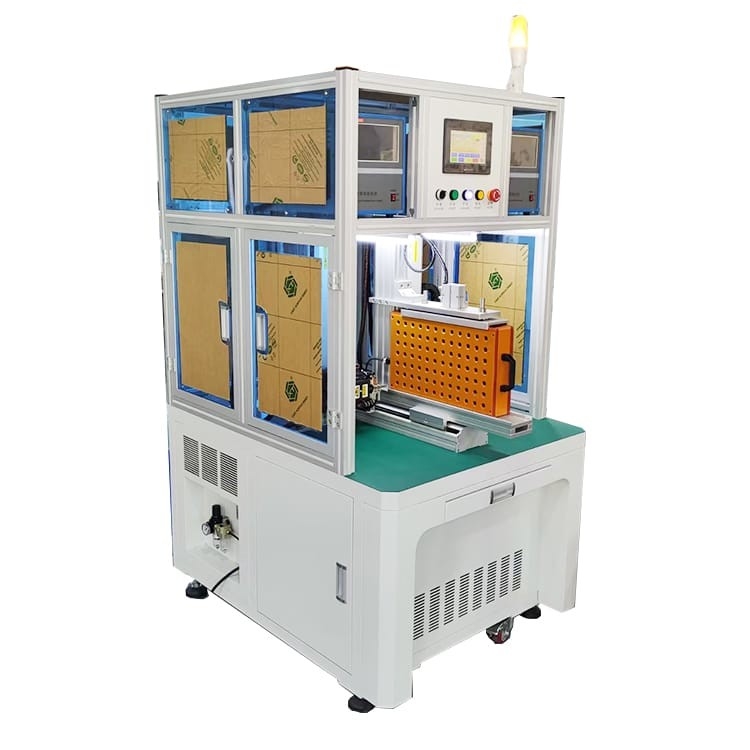

Fully Automatic Double Sided Lithium Battery Spot Welder For Cylindrical 18650 26650 21700
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | PLC, Engine | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Fully Automatic Lithium Battery Spot Welder,Double Sided Lithium Battery Spot Welder,21700 Lithium Battery Spot Welding Machine |
||
Product Description
Fully Automatic Double Sided Cylindrical 18650 26650 21700 Lithium Battery Spot Welding Machine Battery Spot Welder
Application
Suitable for precision automatic welding of various electric tools, automobile battery modules, energy storage battery modules and other 18650/26650 batteries.
Feature
1,Double sided automatic welding, high efficiency, simple programming interface, support CAD mapping, array and manual three ways, support any point programming and array programming, can store any group of programming files.
2,Customized welding head can be used for welding of special battery pack and pure nickel sheet, without sticking needle.
3,Adjustable single spot welding, two-point welding, three spot welding, and the distance between two-point welding and three spot welding is adjustable.
4,The welding pressure can be adjusted independently.
5,It has the functions of origin reset and breakpoint continuation welding.
6,All parameters of equipment welding can be traced to facilitate data management.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

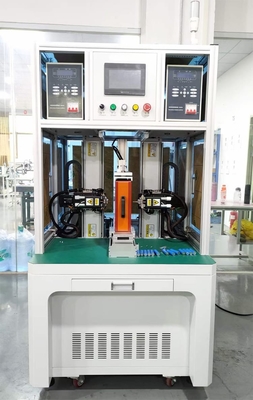

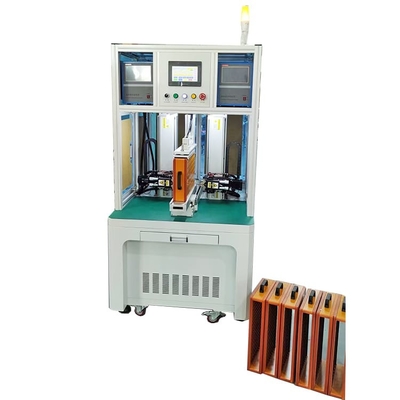

Single Side Spot Welding Machine Details
