High Efficient Spot Welder For 18650 Lithium Batteries Double Side Fully Automatic

Brand Name: XWELL
Model Number: MD-ASW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Core Components:
PLC, Gearbox, Pump, Battery Pack Production
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Energy
Video Outgoing-inspection:
Provided
Pack Size:
X Direction: 26; Y Direction: 26
Welding Current:
5000A 8000A
Voltage:
220V/380V(AC)
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

Spot Welder For 18650 Lithium Batteries

,

PLC Spot Welder For 18650 Lithium Batteries

Product Description

High Efficient Fully Automatic 18650 22650 Battery Packs Double Side Spot Welder For Battery Pack Production

Features:

1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.5s/spot



Operation:

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, TWSL-700L automatically complete all welding actions.





Battery Spot Welding Machine Specification



Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa



Single Side Spot Welding Machine Details

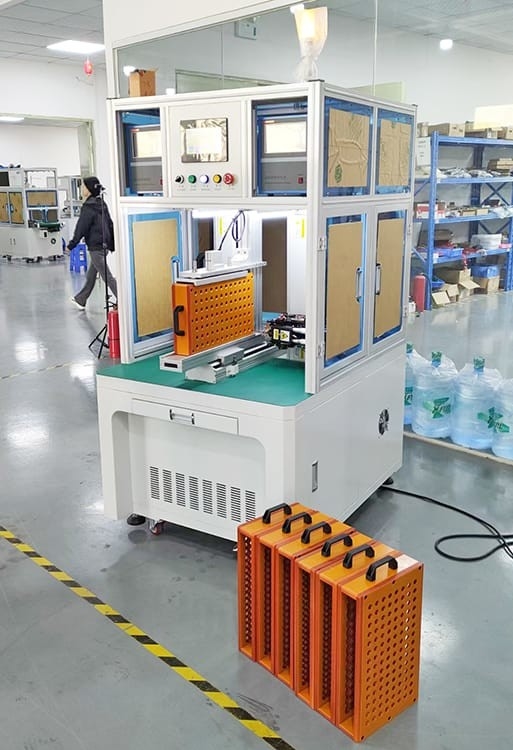

High Efficient Spot Welder For 18650 Lithium Batteries Double Side Fully Automatic 0

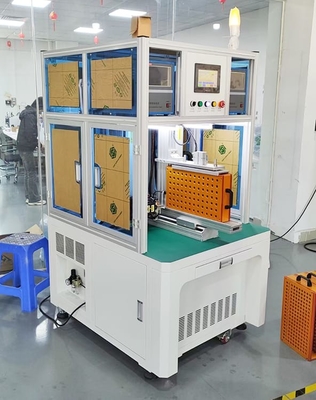

High Efficient Spot Welder For 18650 Lithium Batteries Double Side Fully Automatic 1High Efficient Spot Welder For 18650 Lithium Batteries Double Side Fully Automatic 2
