Double Sides Battery Pack Spot Welder For All Types Lithium Cylindrical Cell

Brand Name: XWELL
Model Number: MD-ASW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Max. Welding Thickness:
0.3mm
Key Selling Points:
High-accuracy
After Warranty Service:
Video Technical Support
Pack Size:
X Direction: 26; Y Direction: 26
Welding Current:
5000A 8000A
Voltage:
220V/380V(AC)
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

4000W Battery Pack Spot Welder

,

Cylindrical Cell Battery Pack Spot Welder

,

Spot Welding Machine For Battery Pack

Product Description

Battery Pack Spot Welding Machine Double Sides Spot Welder for All Types Lithium Cylindrical Cell



Application Area:

With the corresponding fixture, MD-ASW can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.



Product Application:

The MD-5000 Manual Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply(also customize 8000A), Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...



Battery Spot Welding Machine Specification



Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

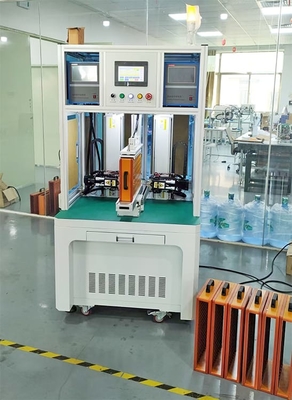

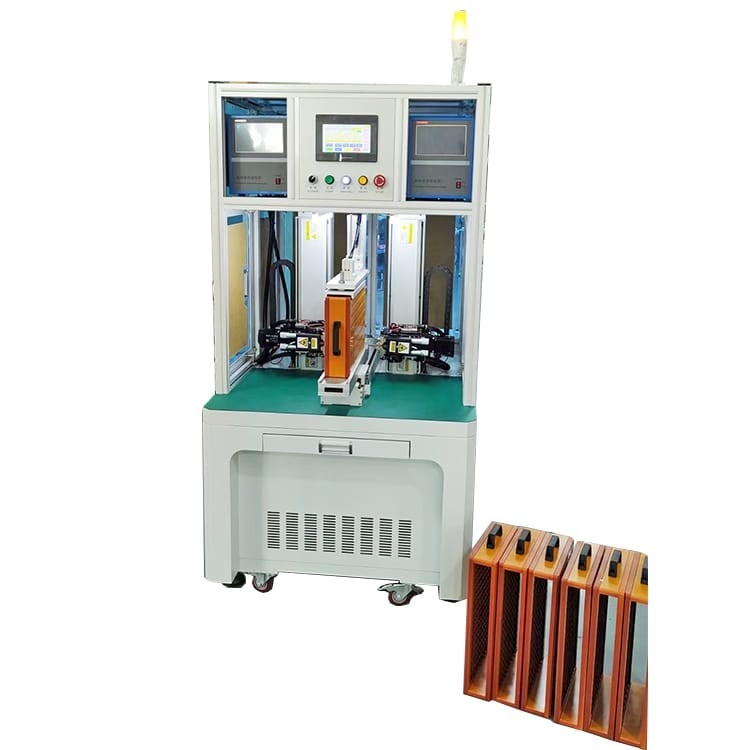

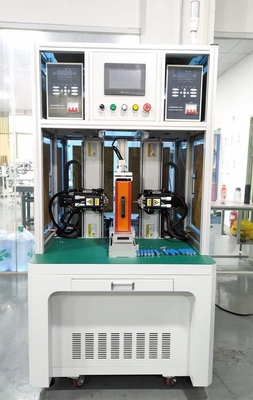

Single Side Spot Welding Machine Details

Double Sides Battery Pack Spot Welder For All Types Lithium Cylindrical Cell 0

Double Sides Battery Pack Spot Welder For All Types Lithium Cylindrical Cell 1Double Sides Battery Pack Spot Welder For All Types Lithium Cylindrical Cell 2
