Battery Pack Welding Machine

Automatic CNC Spot Welding Machine For 18650/26650/32650 Cylindrical Battery Pack

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Automatic CNC Spot Welding Machine For 18650/26650/32650 Cylindrical Battery Pack

Brand Name:	XWELL
Model Number:	MD-ASW
MOQ:	1pcs
Price:	USD 6000 - 9000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Applicable Industries:

Machinery

Place Of Origin:

China

Usage:

Tab Welding

Pack Size:

X Direction: 26; Y Direction: 26

Welding Current:

5000A 8000A

Voltage:

220V/380V(AC)

Power:

4000 W

Supply Ability:

100pcs per month

Highlight:

26650 Battery CNC Spot Welding Machine

32650 Battery CNC Spot Welding Machine

Spot Welding Machine For Lithium Battery Pack

Product Description

Automatic Double Sides Spot Welder/CNC Spot Welding Machine for 18650/26650/32650 Cylindrical Battery Pack

Feature:

This machine is used for 18650/26650/32650 cylindrical battery pack automatic spot welding, it can weld both side together with high speed and good effect.

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. It has a false spot welding and out of spot welding alarm function.

3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4. Welding needle replacement forecast reminder.

5. Own welding current monitoring system, real-time monitoring of welding current.

Operation:

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ADW automatically complete all welding actions.
4. MD-ADW sound to prompt operator replacement of new fixture (battery pack).

Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	single-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

Single Side Spot Welding Machine Details

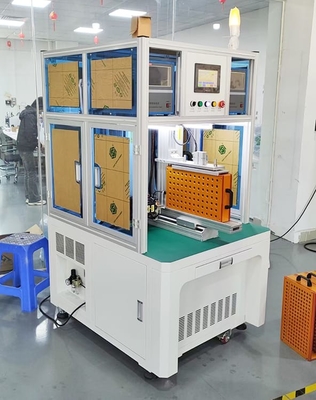

Automatic CNC Spot Welding Machine For 18650/26650/32650 Cylindrical Battery Pack 0

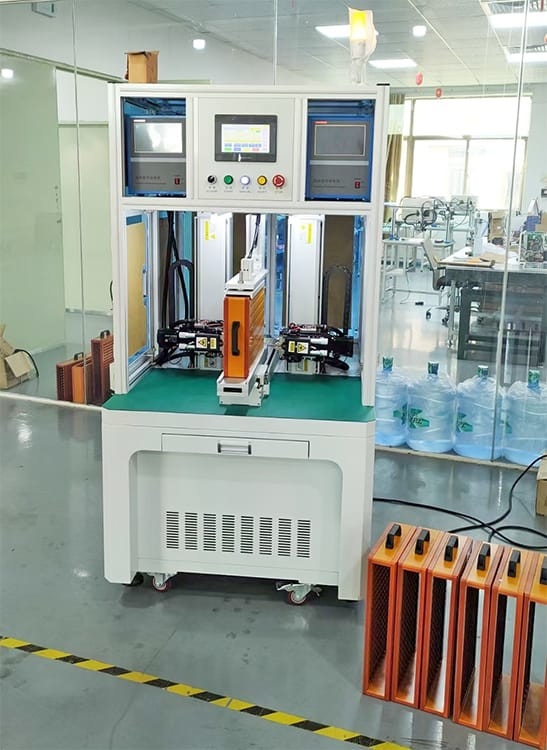

Automatic CNC Spot Welding Machine For 18650/26650/32650 Cylindrical Battery Pack 1
