18650 Battery Pack Spot Welder Full Automatic Double Side For Cylindrical Battery

Brand Name:	XWELL
Model Number:	MD-ASW
MOQ:	1pcs
Price:	USD 6000 - 9000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Key Selling Points:

Automatic

Core Components:

PLC, Motor

Applicable Industries:

Manufacturing Plant

Pack Size:

X Direction: 26; Y Direction: 26

Welding Current:

5000A 8000A

Voltage:

220V/380V(AC)

Power:

4000 W

Supply Ability:

100pcs per month

Highlight:

18650 Battery Pack Spot Welder

,

Cylindrical Battery Pack Spot Welder

,

PLC Battery Pack Spot Welder

Product Description

Full Automatic Double Side 18650 Pack Battery Spot Welder For Cylindrical Battery

Product Description:
This machine is used for 18650 battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Feature:

Support breakpoint start, support automatic start and manual start mode conversion.
It has a false spot welding and out of spot welding alarm function.
Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
Welding needle replacement forecast reminder.
Own welding current monitoring system, real-time monitoring of welding current.


Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	single-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

Single Side Spot Welding Machine Details

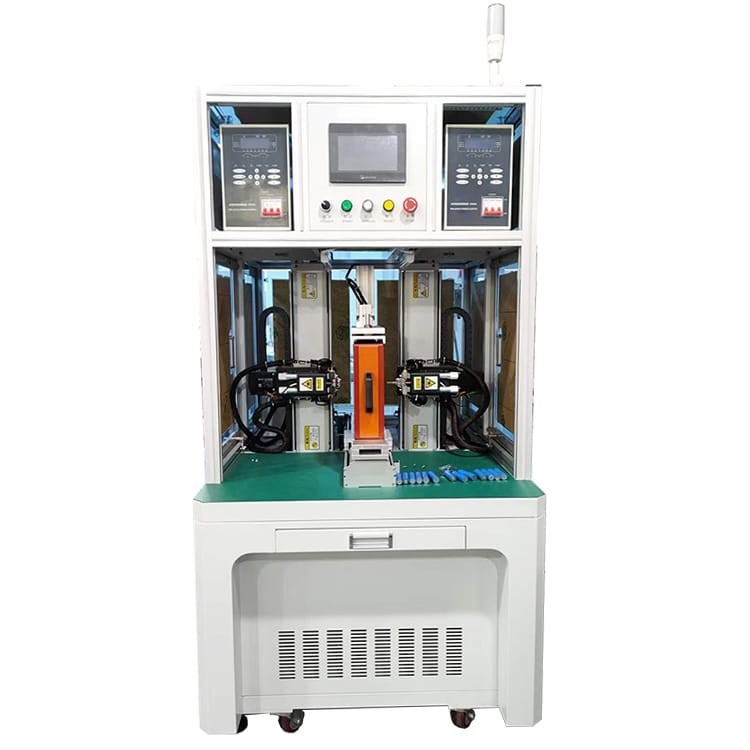

18650 Battery Pack Spot Welder Full Automatic Double Side For Cylindrical Battery 0

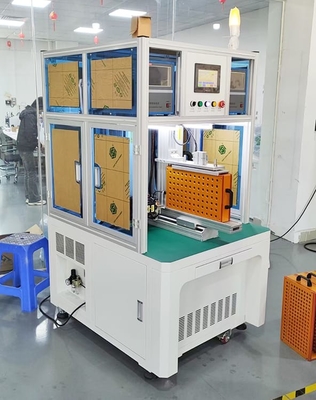

18650 Battery Pack Spot Welder Full Automatic Double Side For Cylindrical Battery 1
