Automatic 18650 Lithium Cylindrical Battery Pack Spot Welding Machine For 21700 Cells

Brand Name: XWELL
Model Number: MD-ASW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Place Of Origin:
Guangdong, China
Max. Welding Thickness:
0.3mm
Marketing Type:
New Product 2023
Pack Size:
X Direction: 26; Y Direction: 26
Welding Current:
5000A 8000A
Voltage:
220V/380V(AC)
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

18650 Battery Pack Spot Welding Machine

,

21700 Battery Pack Spot Welding Machine

,

21700 Cells Lithium Battery Spot Welder

Product Description

Automatic 18650 Lithium Cylindrical Battery Pack Spot Welding Machine Double Sides Welder For 21700 Cells



Product Description:

The MD-ASW Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack tab spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.



Feature:



1)Suitable for all cylindrical cells, like 18650, 21700, 26650, 32650 … battery pack welding; widely application area, like
E-bike, scooter, and electro mobile battery pack welding.

2) 5000A/8000A inverter spot welding power supply (optional), high quality welding effect.
3) Servo motor driving, fast, stable welding.
4) Support breakpoint start, automatic start, and manual start.
5) Cold solder joint and sealing off alarm.




Battery Spot Welding Machine Specification



Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

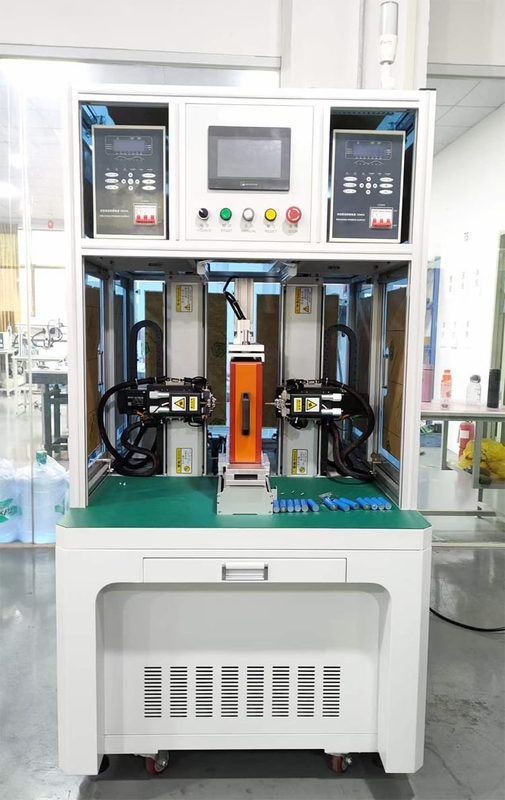

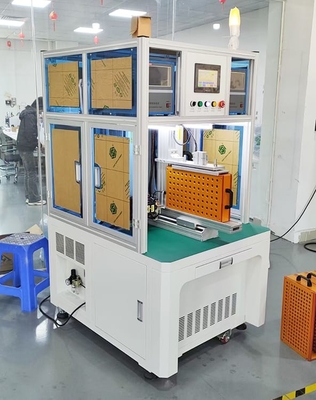

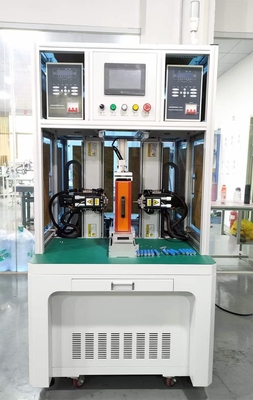

Single Side Spot Welding Machine Details

Automatic 18650 Lithium Cylindrical Battery Pack Spot Welding Machine For 21700 Cells 0

Automatic 18650 Lithium Cylindrical Battery Pack Spot Welding Machine For 21700 Cells 1Automatic 18650 Lithium Cylindrical Battery Pack Spot Welding Machine For 21700 Cells 2
