5 Channels Cylindrical Battery Sorting Equipment Grading Testing Machine For 18650

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Brand Name:
XWELL
Place Of Origin:
Guangdong, China
Function:
Test Capacity
Channel:
5
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

Cylindrical Battery Sorting Equipment

,

5 Channels Battery Sorting Equipment

,

18650 Battery Grading Testing Machine

Product Description

Larger Image Add To Compare Share 5 Channels Cylindrical Battery Sorting Equipment Grading &Testing Machine For 18650

Cylindrical cell sorting equipment:


Cylindrical cell sorting machine is applied in battery grade sorting by testing battery internal resistance and voltage, which is equipped with high precision internal resistance & voltage testing system. It can be used for sorting various models of
cylindrical cell 18650, 21700, 26650, 32700, etc



Application:
● Battery lab
● Battery research
● Lithium ion battery lab
● Material research
● Trial-production











Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h







Cell Sorting Machine Details

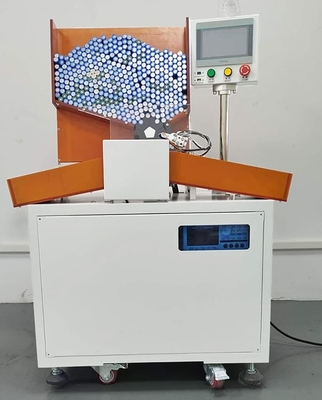

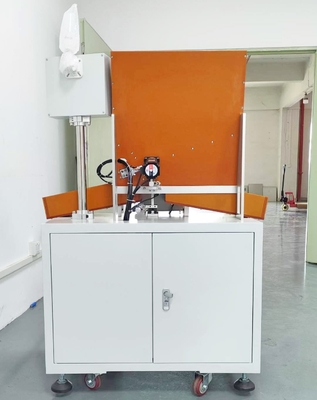

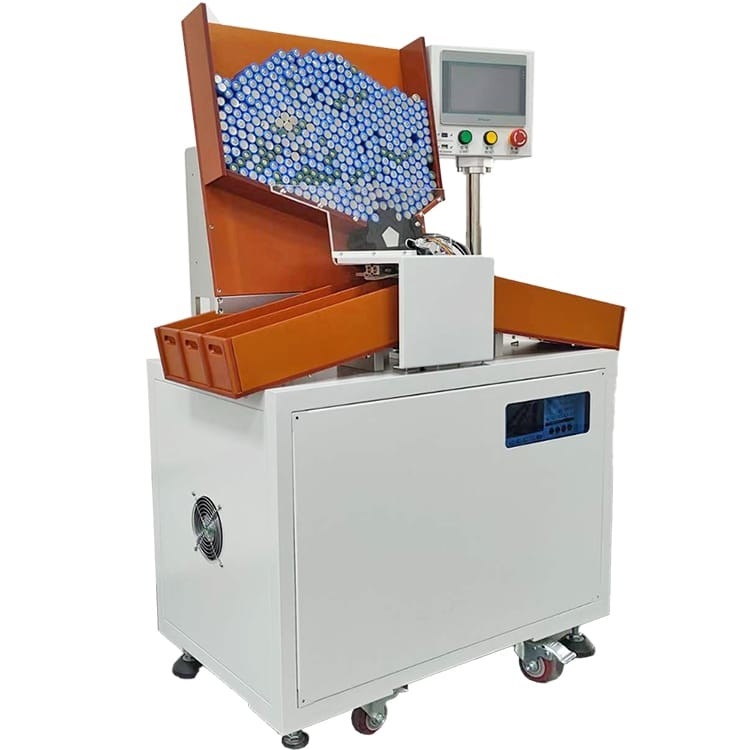

5 Channels Cylindrical Battery Sorting Equipment Grading Testing Machine For 18650 0



5 Channels Cylindrical Battery Sorting Equipment Grading Testing Machine For 18650 1
