Automatic 18650 Cell Sorting Machine Cylindrical Grading Battery Sorting Machine

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Battery Type:
18650 Rechargeable Li-ion
Battery Size:
18650
Battery Type:
Lithium Ion
Channel:
5
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

Automatic 18650 Cell Sorting Machine

,

Cylindrical 18650 Cell Sorting Machine

,

Grading Battery Sorting Machine

Product Description

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine Battery Grading Sorter Machine for Battery Pack​





The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to different channels according to the setting.



Features:

  • 1.Products with high precision internal resistance,Voltage,automatic test system.
  • 2.The device is set according to the settings Internal resistance voltage,
  • 3. Accurate delivery of cores to designated gears.
  • 4 .Hopper put in 500 pcs High production efficiency easy to operate.
  • 5.Stick Barley paper 4200pcs/Hour high stability.
  • 6.Can be docked with automatic veneer cushion machine,Saving labor.










Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h

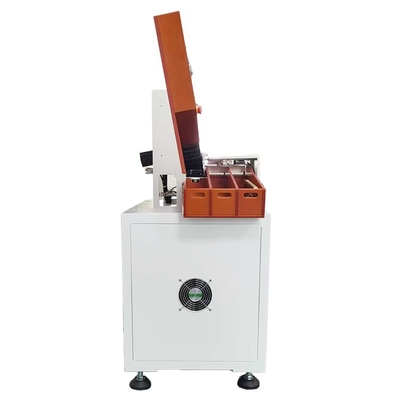

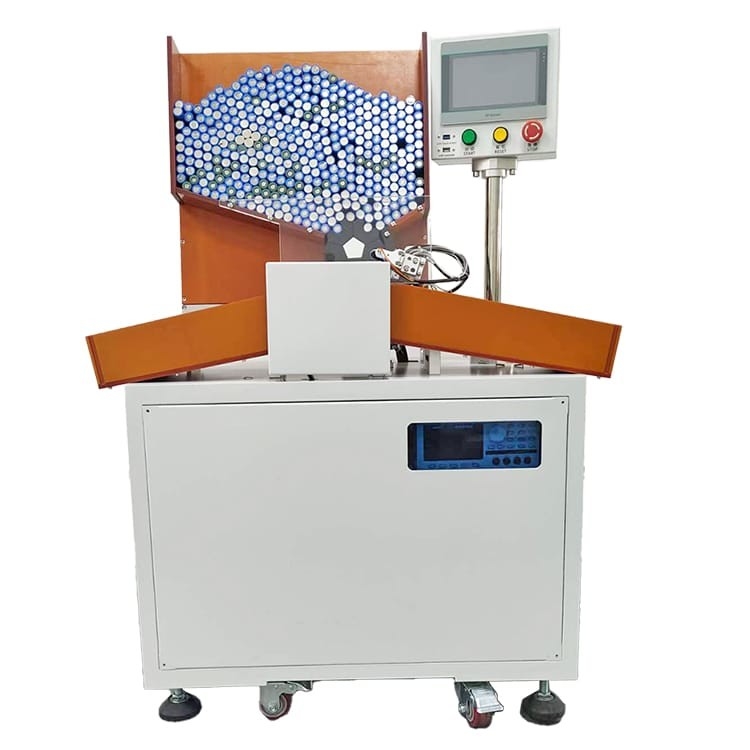

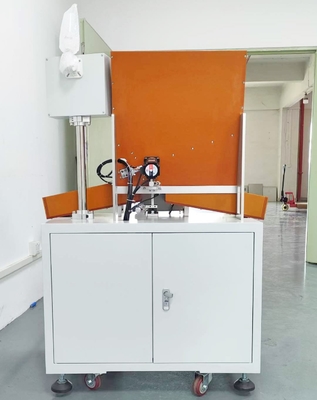

Cell Sorting Machine Details



Automatic 18650 Cell Sorting Machine Cylindrical Grading Battery Sorting Machine 0



Automatic 18650 Cell Sorting Machine Cylindrical Grading Battery Sorting Machine 1
