Battery Cell Sorting Machine

Lithium Battery Cell Automatic Sorting Machine 5 Channel For 18650 / 21700 Cell

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Lithium Battery Cell Automatic Sorting Machine 5 Channel For 18650 / 21700 Cell

Brand Name:	XWELL
Model Number:	XW-BS05
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Video Outgoing-inspection:

Provided

Marketing Type:

New Product 2023

Applicable Industries:

Energy & Mining

Channel:

Warranty:

1 Year

Efficiency:

3500-4000pcs/h

Power:

<1000W

Test Parameter:

AC Internal Resistance, DC Voltage

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

18650 Cell Automatic Sorting Machine

21700 Cell Automatic Sorting Machine

Lithium Battery Cell Sorting Machine ODM

Product Description

5 channel 18650 and 21700 battery cell Lithium Battery Cell Automatic Sorting Machine

Introduction

The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.

On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.

Customization

1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.

2. The battery sorter can equip with a computer which can record the data of battery sortting.

3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.

4. Besides battery sorter, LN also provide a whole line machine for battery pack assembly.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

Cell Sorting Machine Details

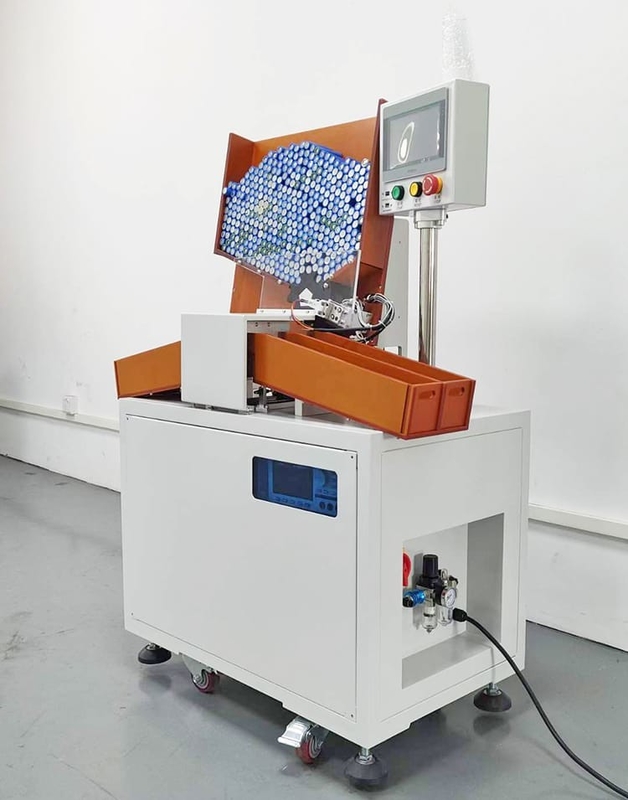

Lithium Battery Cell Automatic Sorting Machine 5 Channel For 18650 / 21700 Cell 0

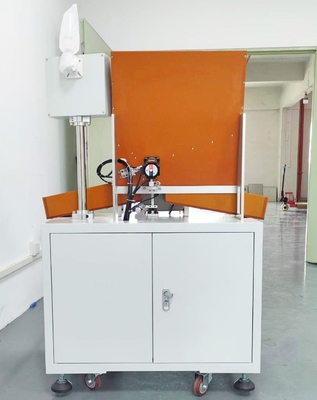

Lithium Battery Cell Automatic Sorting Machine 5 Channel For 18650 / 21700 Cell 1
