Cylinder Battery Automatic Sorter Battery Cell Sorting Machine For Lithium Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Condition: | New | Marketing Type: | Ordinary Product |
|---|---|---|---|
| PAYMENT: | T/T | Channel: | 5 |
| Warranty: | 1 Year | Efficiency: | 3500-4000pcs/h |
| Power: | <1000W | Test Parameter: | AC Internal Resistance, DC Voltage |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Cylinder Battery Automatic Sorter,Lithium Battery Automatic Sorter,Battery Cell Sorting Machine 4000pcs/h |
||
Product Description
5 channel Cylinder battery Automatic sorter Battery Cell Sorting machine for Lithium Battery Pack
Technological Process
The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:
Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.
The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.
Advantages
1. Stable control system
2. High configuration regulator
3. High Precision Work Procedure
4. High cost performance ratio of products
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |

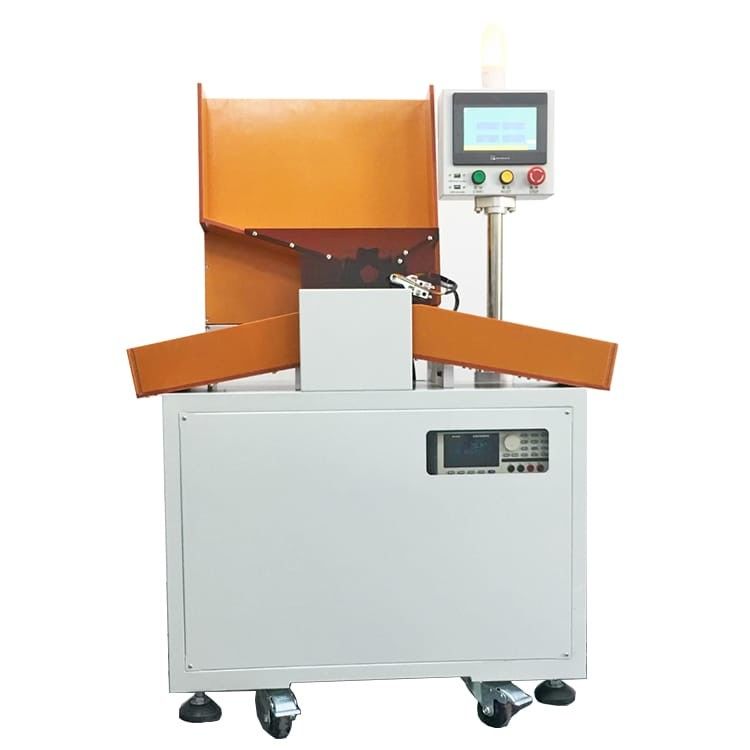

Cell Sorting Machine Details
