The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting.

Features:

1. It is a must equipment for battery pack manufacturer for voltage and resistance testing and sorting.

2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells.

3. Sort by cell's voltage and impedance up to 5 groups.

4. Automatic sorting control.

5. Easy to refill cells during the process.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

Cell Sorting Machine Details

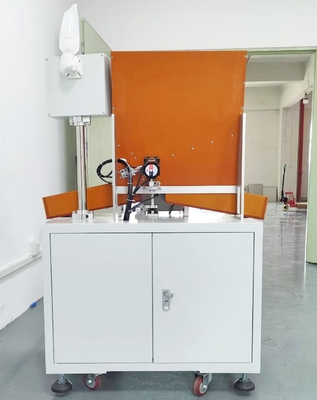

Cylindrical Battery Cell Sorting Machine Tester 5 Channels For 18650 26650 32650 21700 0

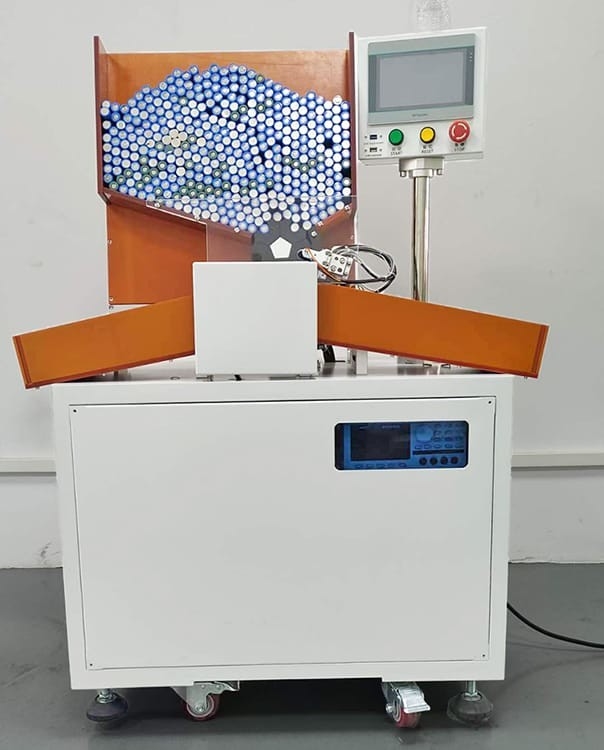

Cylindrical Battery Cell Sorting Machine Tester 5 Channels For 18650 26650 32650 21700 1
