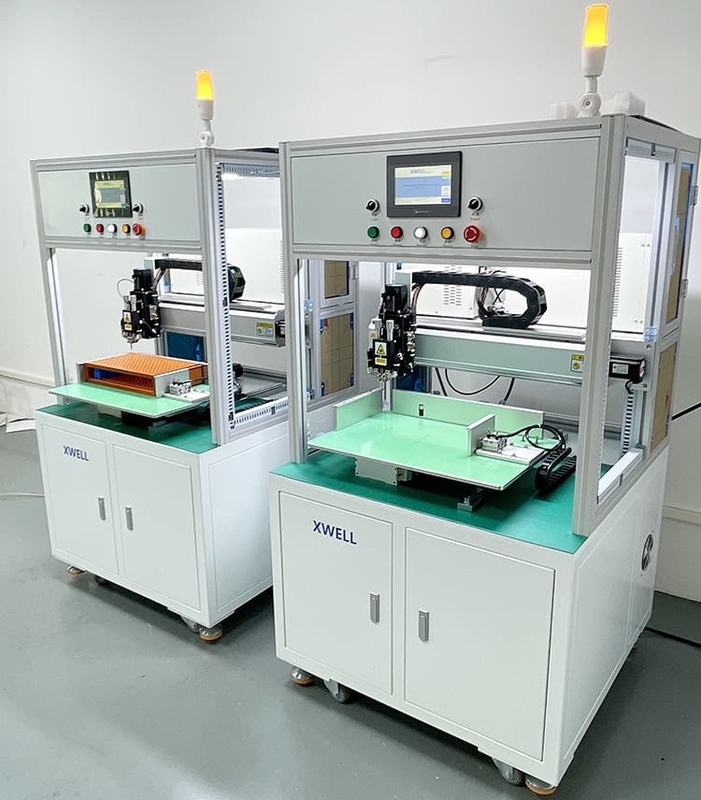

Lithium Cylindrical Battery Pack Spot Welder Automatic Single Side Head
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining, Lithium Battery | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Lithium Cylindrical Battery Pack Spot Welder,Automatic Cylindrical Battery Pack Spot Welder,Single Side Head Battery Spot Welder |
||
Product Description
Automatic Lithium Cylindrical Battery Pack Single Side Head Welding Machine Equipment Spot Welder
Features
1.Customized welding head can be used for welding of special battery pack and pure nickel sheet, without sticking needle.
2,Adjustable single spot welding, two-point welding, three spot welding, and the distance between two-point welding and three spot welding is adjustable.
3,The welding pressure can be adjusted independently.
4,It has the functions of origin reset and breakpoint continuation welding.
5,All parameters of equipment welding can be traced to facilitate data management. Application Area
Application
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
