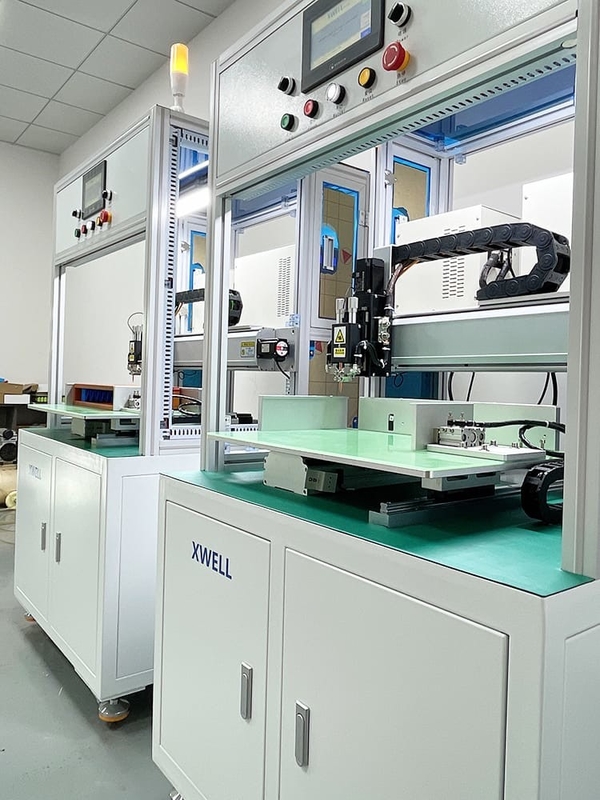

18650 Battery Spot Welding Machine For Lithium Battery Pack Automatic Double Side
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty Of Core Components: | 1 Year | Brand Name: | XWELL |
|---|---|---|---|
| Condition: | New | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 18650 Battery Spot Welding Machine,5000A Battery Spot Welding Machine,Spot Welding Machine For Lithium Battery Pack |
||
Product Description
Lithium Battery Pack Welder 18650 Battery Automatic Double Side Spot Welding Machine
Product Description:
Suitable for precision automatic welding of various electric tools, automobile battery modules, energy storage battery modules and other 18650/26650 batteries.
Product feature:
1.The welding pulse width is adustable,the welding machine is firm and small splash,and the solder joints do not change color.
2.The equipment is simple to debug and quick to change models.
3.High frequency inverter DC/welding,digitally set the welding parameters,the operation is convenient and clear.
4.Fully servo drive with X/Y axis,ball screw drive to ensure spot welding accuracy.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
