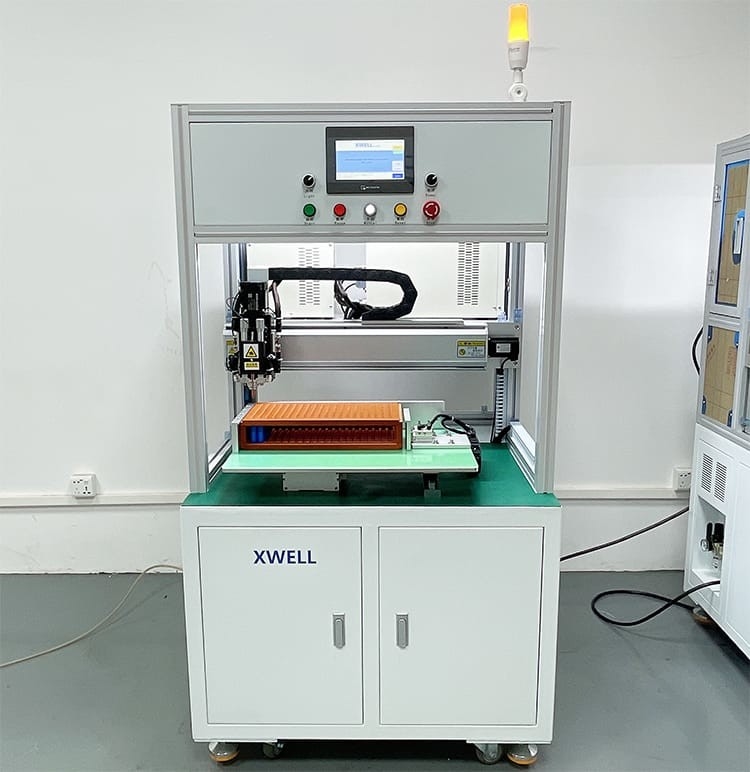

Single Side Battery Spot Welding Machine High Efficiency For Li Ion Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Max. Welding Thickness: | 3mm | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Key Selling Points: | High-accuracy | Brand Name: | XWELL |
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | 3mm Battery Spot Welding Machine,Single Side Li Ion Spot Welder,High Efficiency Li Ion Spot Welder |
||
Product Description
High Efficiency Automatic Single Side Spot Welding Machine For Li-ion Battery Pack
Application
Suitable for precision automatic welding of various electric tools, automobile battery modules, energy storage battery modules and other 18650/26650 batteries.
Advantages
1.The single-sided automatic spot welding machine supports breakpoint start, and can be equipped with transistor welding power supply and 5000A / 8000A inverter DC welding power supply. It can weld slotted nickel sheets below 0.3mm.
2.Single sided automatic welding, high efficiency.
3.The programming interface is easy to operate. It supports CAD array and manual programming. Any point programming and array programming can store any group of programming files.
4.Warning for welding electrode replacement.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
