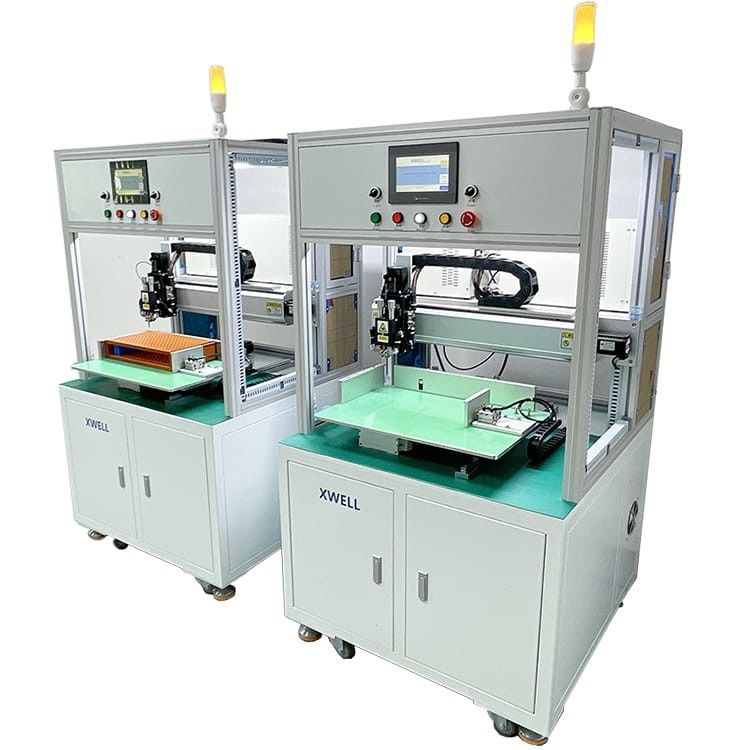

Automatic Lithium Battery Spot Welding Machine Single Side 5000A 8000A Current
  • name

Automatic Lithium Battery Spot Welding Machine Single Side 5000A 8000A Current

Brand Name: XWELL
Model Number: MD-ASW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Core Components:
PLC
Welding Thicknes:
0.1MM---0.3MM
Place Of Origin:
Guangdong, China
Brand Name:
XWELL
Pack Size:
X Direction: 26; Y Direction: 26
Welding Current:
5000A 8000A
Voltage:
220V/380V(AC)
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

Automatic Lithium Battery Spot Welding Machine

,

8000A Lithium Battery Spot Welding Machine

Product Description

Lithium Battery Pack Welder Battery Automatic Single Side Spot Welding Machine


Battery Spot Welding Machine Application



Suitable for precision automatic welding of various electric tools, automobile battery modules, energy storage battery modules and other 18650/26650 batteries.





Battery Spot Welding Machine Application Feacture



1.The welding pulse width is adustable,the welding machine is firm and small splash,and the solder joints do not change color.
2.The equipment is simple to debug and quick to change models.
3.High frequency inverter DC/welding,digitally set the welding parameters,the operation is convenient and clear.
4.Fully servo drive with X/Y axis,ball screw drive to ensure spot welding accuracy.



Battery Spot Welding Machine Specification



Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa



Single Side Spot Welding Machine Details

Automatic Lithium Battery Spot Welding Machine Single Side 5000A 8000A Current 0

Automatic Lithium Battery Spot Welding Machine Single Side 5000A 8000A Current 1Automatic Lithium Battery Spot Welding Machine Single Side 5000A 8000A Current 2
