18650 / 21700 / 32650 Battery Spot Welding Machine Automatic Single One Side
  • name

18650 / 21700 / 32650 Battery Spot Welding Machine Automatic Single One Side

Brand Name: XWELL
Model Number: MD-ASW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Max. Welding Thicknes:
0.1MM---0.3MM
Voltage:
220V/380V(AC)
Key Selling Points:
High Productivity
Applicable Industries:
Battery Making
Pack Size:
X Direction: 26; Y Direction: 26
Driving Mode:
Stepper Servo Motor
Welding Current:
5000A 8000A
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

32650 Battery Spot Welding Machine

,

21700 Battery Spot Welding Machine

,

18650 Battery Spot Welding Machine

Product Description

Automatic Single One Side Lithium Ion Battery 18650 / 21700 / 32650 Battery Spot Welding Machine


Battery Spot Welding Machine Application



MD-ASW is a standard singel-side automatic spot welding machine ,it no welding head rotation function, and BT-960XZ with welding head rotation function.Suitable for 14500 / 18500 / 18650 / 18730 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc.





Battery Spot Welding Machine Application Feacture



1. The welding current will rise with the power on time to ensure the welding effect.

2. Stable control system

3. High configuration regulating device

4. High precision working procedure

5. High cost performance of products




Battery Spot Welding Machine Specification



Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa



Single Side Spot Welding Machine Details

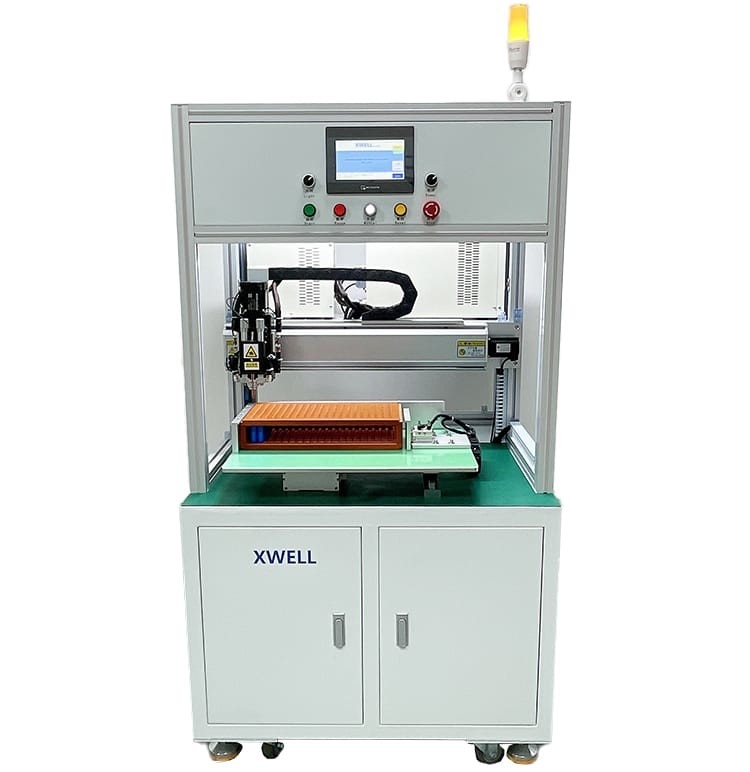

18650 / 21700 / 32650 Battery Spot Welding Machine Automatic Single One Side 0

18650 / 21700 / 32650 Battery Spot Welding Machine Automatic Single One Side 118650 / 21700 / 32650 Battery Spot Welding Machine Automatic Single One Side 2
