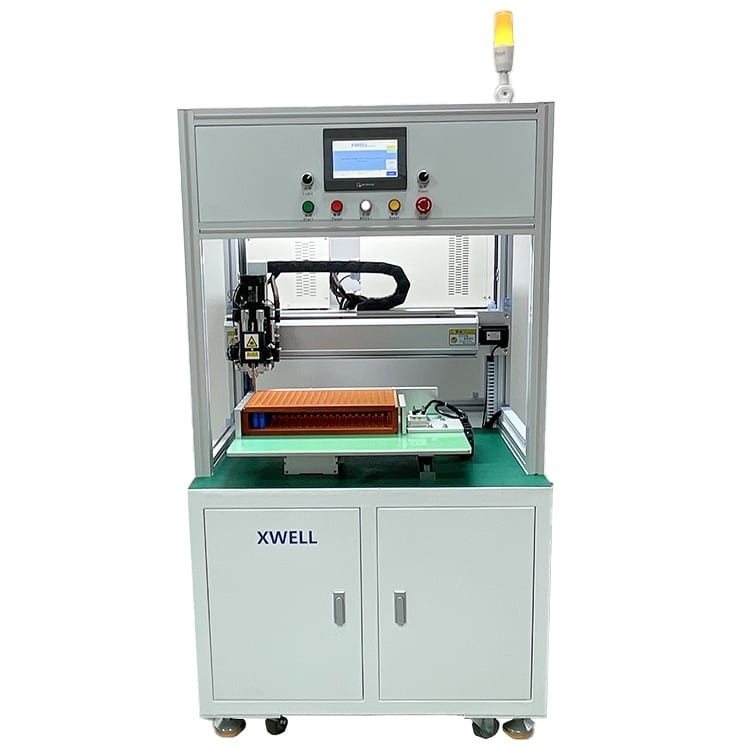

Lithium Battery Single Side Spot Welding Machine Stepper Servo Motor Driving
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | PLC | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Max. Welding Thickness: | 3mm | Pack Size: | X Direction: 26; Y Direction: 26 |
| Driving Mode: | Stepper Servo Motor | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | 3mm Lithium Battery Spot Welding Machine,PLC Lithium Battery Spot Welding Machine,Lithium Battery Single Side Spot Welding Machine |
||
Product Description
Lithium Battery Pack Welder Battery Automatic Single Side Spot Welding Machine
Battery Spot Welding Machine Description
Suitable for precision automatic welding of various electric tools, automobile battery modules, energy storage battery modules and other 18650/26650 batteries.
Battery Spot Welding Machine Application Feacture
1.The welding pulse width is adustable,the welding machine is firm and small splash,and the solder joints do not change color.
2.The equipment is simple to debug and quick to change models.
3.High frequency inverter DC/welding,digitally set the welding parameters,the operation is convenient and clear.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
