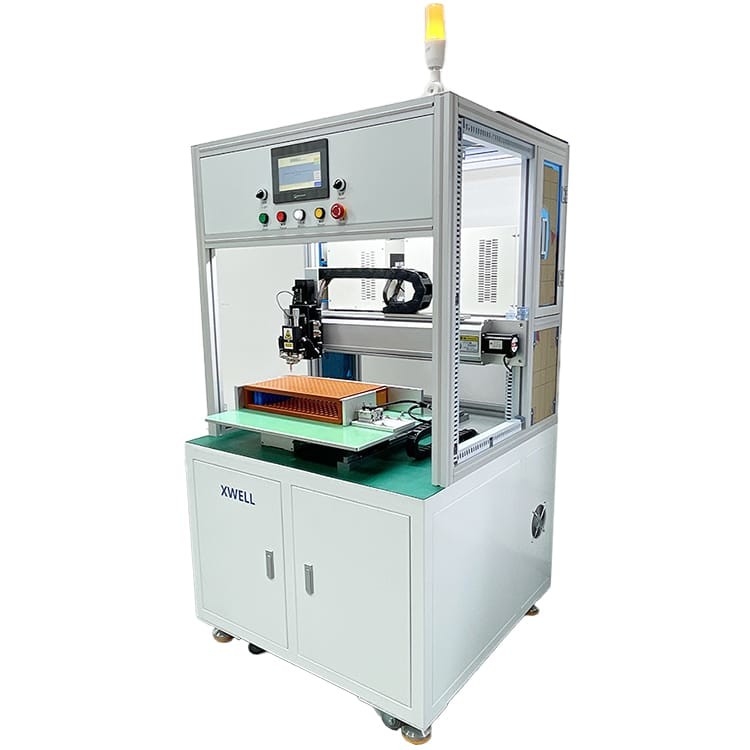

Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Marketing Type: | New Product 2023 |
|---|---|---|---|
| Brand Name: | XWELL | Pack Size: | X Direction: 26; Y Direction: 26 |
| Driving Mode: | Stepper Servo Motor | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | 8000A Battery Pack Spot Welder,Cylindrical Battery Automatic Spot Welding Machine,Nickel Strip Battery Pack Spot Welder |
||
Product Description
Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip
Battery Spot Welding Machine Description
The MD-ASW Single Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Battery Spot Welding Machine Application Area
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack,automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
