CE Single Side Spot Welding Machine For Cylindrical Battery Pack Electric Bike Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Modle: | MD-ASW | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Marketing Type: | Hot Product 2023 | Pack Size: | X Direction: 26; Y Direction: 26 |
| Driving Mode: | Stepper Servo Motor | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | 0.6 Mpa Single Side Spot Welding Machine,Cylindrical BatteryCylindrical Battery Single Side Spot Welding Machine |
||
Product Description
Automatic Single Side Spot Welding Machine for Cylindrical Battery Pack Electric Bike Battery Pack Machine
Battery Spot Welding Machine Description
Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Battery Spot Welding Machine Features
1. Suitable for 18650, 26650…battery pack welding, like E-bike, scooter, and electromobile battery pack welding.
2. Induction load voltage, feedback mode to control the constant voltage, to achieve high-quality welding.
3. PRE HEAT, MAIN HEAT power mode, preheats before welding, to ensure a stable welding quality.
4. To maintain the continuity of energy density, welding time is short, reduce the base metal deformation and discoloration.
5. Easy to change from low current to high current, suitable for precision welding.
6. Can set the upper and lower limits of the current, simply determine the quality of welding is good or not.
7. The welding current increases with the welding time to ensure the welding result.
Battery Spot Welding Machine Application
The MD-5000 Manual Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply(also customize 8000A), Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

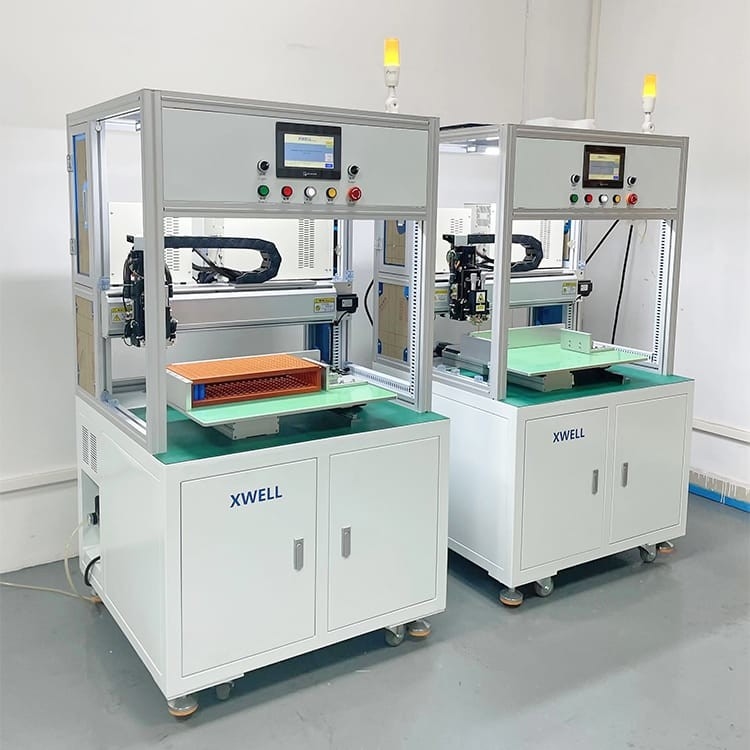

Single Side Spot Welding Machine Details
