Good price online

products details

Home > Products >
Battery Cell Sorting Machine
>
5 Channel Cylindrical Cell Sorting Machine For Lithium Ion Battery Pack 32140 33138 33140
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
  • name
  • name

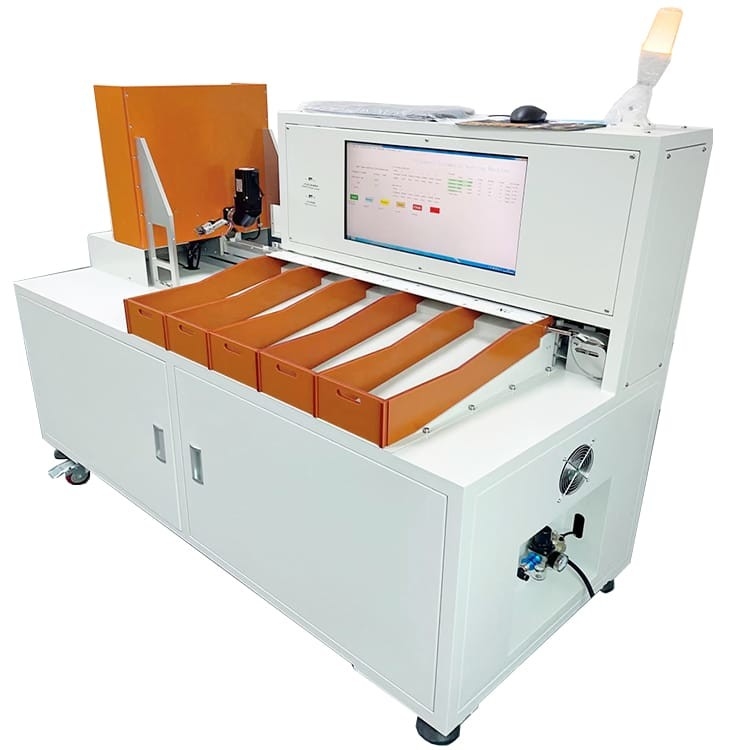

5 Channel Cylindrical Cell Sorting Machine For Lithium Ion Battery Pack 32140 33138 33140

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Place Of Origin:
Guangdong，China
Brand Name:
Xwell
Modle:
XW-BS05
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

32140 Cylindrical Cell Sorting Machine

,

33138 Cylindrical Cell Sorting Machine

,

Cylindrical Battery Lithium Cell Sorting Machine

Product Description

5 Channel Cylindrical Cell Selector Battery Sorting For Lithium Ion Battery Pack 32140 33138 33140​



Introduction



Cylindrical cell sorting machine is applied in battery grade sorting by testing battery internal resistance and voltage, which is equipped with high precision internal resistance & voltage testing system. It can be used for sorting various models of
cylindrical cell 18650, 21700, 26650, 32700, etc. The batteries will be sent to the specified channels according to preset value, 5 channels



 Features



Automatically testing battery for internal resistance &voltage.
Equipped with high-precision testing system for battery internal resistance and voltage sorting according to the pre-set values.
High working efficiency, sorting faster.
Universal wheel makes it easy for moving.











Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h







Cell Sorting Machine Details



5 Channel Cylindrical Cell Sorting Machine For Lithium Ion Battery Pack 32140 33138 33140 0



5 Channel Cylindrical Cell Sorting Machine For Lithium Ion Battery Pack 32140 33138 33140 1
