5 Channel Cylindrical Battery Sorting Machine 32140 33138 33140 Lithium Battery Sorter
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Packaging Details: | Wooden Carton |
|---|---|---|---|
| Channel: | 5 Channels | Supply: | 220V |
| Warranty: | 1 Year | Efficiency: | 3500-4000pcs/h |
| Power: | <1000W | Test Parameter: | AC Internal Resistance, DC Voltage |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | CE Cylindrical Battery Sorting Machine,33138 Lithium Battery Sorter,33140 Lithium Battery Sorter |
||
Product Description
5 Channel Automatic Cylindrical Battery Sorting Machine / Lithium Battery Sorter 32140 33138 33140
Introduction
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 32650 21700 cell.
3. Sort by cell's voltage and impedance up to 5 groups.
4. Automatic sorting control.
5. Easy to refill cells during the process.
6. Wheels design, easy to move the machine to any operating place.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |

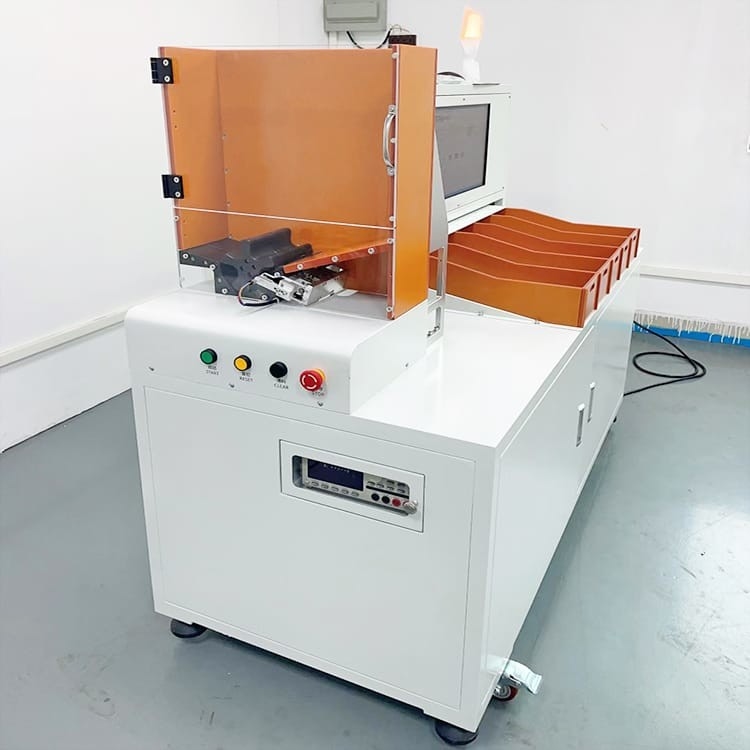

Cell Sorting Machine Details
