100V Battery Pack Tester Internal Resistance Battery Charge And Discharge Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BTS100-20-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5800/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | BTS100-20-120 | Power Supply: | AC 220V ±10% / 50Hz |
|---|---|---|---|
| Max Voltage: | 100V | Charge Current: | 20A |
| Discharge Current: | 120A | Power:: | Electronic |
| Voltage And Current Testing Sample:: | 4-wire Connecting | Communication Means:: | TCP/IP Protocol |
| Highlight: | 100V Battery Pack Tester,Internal Resistance Battery Pack Tester,100V Battery Charge And Discharge Machine |
||
Product Description
100V Battery Pack Comprehensive Tester Lithium Battery Internal Resistance Charge And Discharge
Battery Comprehensive Tester Function
1. Open circuit voltage: test the voltage at the positive and negative ends of the open circuit of the battery
2. AC internal resistance: test the resistance at both ends of the battery discharge circuit
3. Discharge test: test the continuous load capacity of the battery, let the battery continue to discharge for a certain period of time, and test the voltage drop
4. Discharge overcurrent test: test the battery high current discharge protection function, the battery high current discharge triggers the discharge overcurrent protection function of the battery protection board
5. Short circuit protection: test battery positive and negative short circuit battery cut off 5. Protection time (microsecond level)
6. Charging test: test the continuous charging function of the battery, and test whether the charging performance of the battery is good
7. Charging overcurrent test: test the battery high current charging protection function, the battery high current charging triggers the charging current protection function of the battery protection board
8. Resistance R1/R2 test: test the specific resistance on the battery, such as NTCID resistance, etc.
Battery Comprehensive Tester Specification
|
Input power
|
AC 220V ±10% / 50Hz
|
||
|
Test category
|
Test items
|
Testing range
|
Accuracy
|
|
Open circuit voltage
|
Open circuit voltage1
|
0-100V
|
±2mV
|
|
Open circuit voltage2
|
0-100V
|
±2mV
|
|
|
Discharge test
|
Starting voltage
|
0-100V
|
±2mV
|
|
End voltage
|
0-100V
|
±2mV
|
|
|
Discharge current
|
0.1-60A
|
±1mA
|
|
|
Discharge time
|
0-60S
|
±1mS
|
|
|
Discharge over current test
|
Over discharge current
|
4-120A
|
±1mA
|
|
Over current delay
|
0-20S
|
±1mS
|
|
|
Short circuit protection
|
Short circuit protection delay
|
0-9999uS
|
±1uS
|
|
Charging test
|
Starting voltage
|
0-100V
|
±2mV
|
|
End voltage
|
0-100V
|
±2mV
|
|
|
Charging current
|
0.1-20A
|
±1mA
|
|
|
Charging time
|
0-60S
|
±1mS
|
|
|
Charging protection test
|
Charging over current
|
4-20A
|
±1mA
|
|
Charging delay
|
0-20S
|
±0.1mS
|
|
|
Internal impedance
|
|||
|
AC internal resistance test
|
0-1000mΩ
|
±1mΩ
|
|
|
Online mode
|
Serial communication (RS232, multiple)
|
||
|
Sustainable output power
|
2KW
|
||
|
Sustainable load power
|
6KW
|
||
|
Test record keeping
|
Save to database (SQL) or file (Excel)
|
||

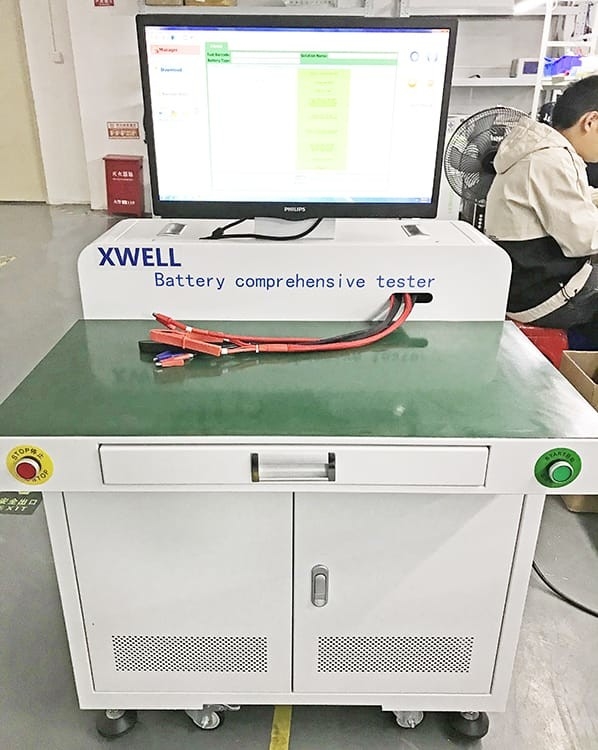

Battery Comprehensive Tester Picture
