18650 21700 Battery Sticking Machine Insulation Barley Paper Battery Pasting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | MD-BSM | Material: | Insulation Barley Paper |
|---|---|---|---|
| Working Speed: | 4000pcs/hour | Paper Size: | 100mm Paper Total Thickness:0.3mm |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | 18650 Battery Sticking Machine,21700 Battery Pasting Machine,Barley Paper Battery Pasting Machine |
||
Product Description
Lithium Battery Automatic Paste Insulation Barley Paper Pad Machine 18650 21700
Battery Sticking Machine Product Features
1. Automatic detection: It has the functions of battery positive and negative detection and internal resistance voltage detection. Unqualified batteries are screened in advance to ensure that each battery can maintain a uniform electrode direction and similar internal resistance voltage, and there is no need to re-test the battery. Sorting, reducing extra workload
2. Accurate and efficient: The self-developed mechanical sticker structure cooperates with the imported Mitsubishi PLC control system and multiple sensors to cooperate with each other to ensure constant pressure on the sticker and consistent bonding pressure, so that each battery can get perfect insulation protection
3. Electric stamping and cutting: use precision dies and electric mechanisms to automatically punch and cut blue bare paper, no special blue bare paper is needed, just install ordinary blue bare paper on the machine to complete cutting, stickers, waste recycling, etc. A complete set of workflow
4. Intelligent control: Equipped with Beijing Kunlun Tongtai touch panel, the operation interface is simple and clear, and the production can be started after the parameters are configured once. There is no need to repeatedly set the production parameters, and it supports one-key start
Battery Sticking Machine Mechanical structure
1) The equipment has compact structure design, beautiful appearance and small space occupation.
2) Manual whole-box feeding of equipment.
3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
4) The equipment is equipped with universal movable casters, which makes it easy to move and move.
Battery Sticking Machine Specification
| oltage/Power | Single-phase 220V,50Hz, 1500W |
| Air Pressure | 0.4-0.8Mpa |
| Material Specfication | Barley paper |
| Maximum Breadth |
100mm paper Total thickness:0.3mm |
| Charging Pattern | Put in Batteries disposable put in 500PCS |
| Production Efficiency | 4800pcs/hour, single pad 4pcs |
| Size(L xW x H) | 1000x700x1630mm |
| Surfact Mat Material | Barley paper or PVC |
| Control Device |
7 inck Touch Screen PLC programming unit and stepper motor |
Battery Sticking Machine Parts
| No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC,Airtac |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Stepper Motor | Lesev/Inovance |
| 8 | Servo Motor | Fuji/Panasonic |
| 9 | Support Base | NSK |
| 10 | Lead Screw | HIWIN |

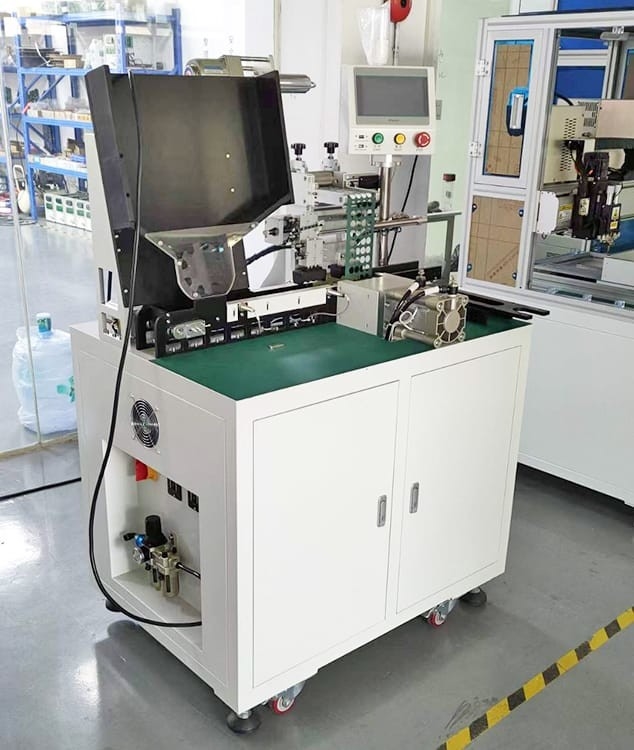

Battery sticking machine details
Battery Sticking Machine Samples
Battery Sticking Machine Package
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
Battery Sticking Machine delivery time
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
