Automatic Double Sided Spot Welding Machine For 18650 Power Lithium Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 9000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-ADW | Welding Size: | 500 * 350 Mm |
|---|---|---|---|
| Capacity: | 300pcs | Welding Thickness: | 0.1mm-0.25mm |
| Head Number: | 2 Pcs | Power Source: | 8000A Inverter Spot Welder / 6000A Transistor Power Supply |
| Efficiency: | 3500pcs/h | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| User Interface: | Embedded System + Man - Machine Screen | Drive Mode: | Step Motor And Precision Guide Rail |
| Highlight: | 18650 Double Sided Spot Welding Machine,Double Sided Lithium Battery Spot Welder,18650 Lithium Battery Spot Welder |
||
Product Description

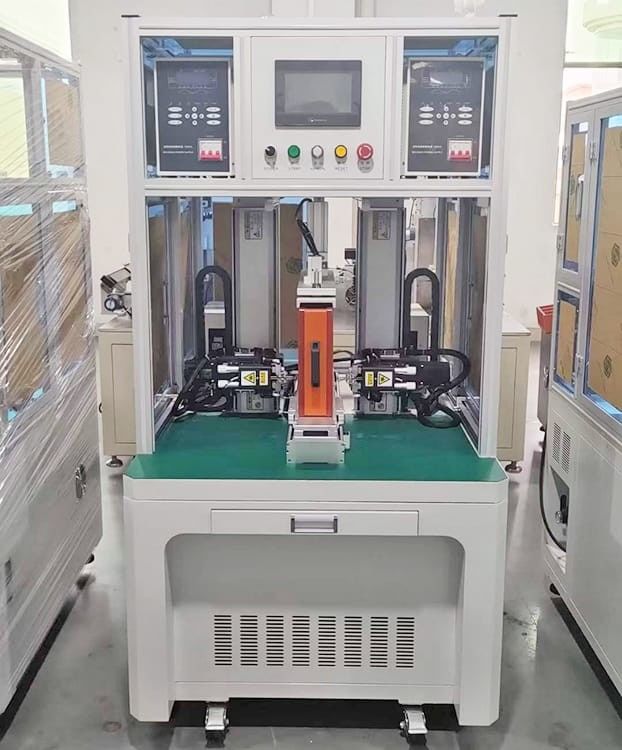

18650 Power Lithium Battery Automatic Double-Sided Spot Welding Machine
Double-Sided Spot Welding Machine Features
1. Adopt XWELL welded frame, more stable operation.
2. Adopt motion controller, support array and non-array battery packs, intelligent operation, easy operation and fast programming
3. Double-sided automatic welding, support breakpoint start, support automatic start and manual start mode conversion.
4. Equipped with welding current monitoring and alarm system, real-time monitoring of welding current and automatic repair welding function.
5. It comes with welding pin processing compensation function, and the welding pin part adopts a water-cooled circulation heat dissipation system to effectively reduce the loss of welding pins.
Double-Sided Spot Welding Machine Description
The MD-ADW Double Side Automatic Battery Pack Spot Welding Machinew is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
MD-ADW is double welder design, the positive and negative pole of the battery can be welded at the same time, the efficiency is improved by 2 times compared to the single side welding machine.
Double-Sided Spot Welding Machine Specification
| Model | MD-ADW |
| Y-axis travel | 500mm |
| Z-axis travel | 350mm |
| Spot welding speed | 0.3s / point; 5000pcs / h |
| Maximum speed of motor drive | 1000mm/s |
| The maximum number of batteries loaded | 300pcs (standard 18650 lithium battery) |
| Number of groups for storing files | 99 groups |
| Operating system | Embedded system + man-machine screen |
| Transmission | Stepper + imported precision linear guide (optional servo + screw) |
| Power supply | Single-phase 220V ± 10% / 50Hz ± 10% |
| Air supply | 0.4 ~ 0.6Mpa |
| Weight | 350KG |
| Dimensions | 1100mm*900mm*1930mm |
Double-Sided Spot Welding Machine Application
With the corresponding fixture, MD-ADW can weld 18650, 21700,26650, 32650 and other cylindrical batteries and etc.
Double-Sided Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
