8 Channels Battery Charge Discharge Tester Cylindrical Cell Battery Cell Grading Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-5V3A-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 500-600/pcs |
| Packaging Details: | Carton, Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channel: | 8 | Current Range: | 3A/6A |
|---|---|---|---|
| Voltage: | 5V | Support Cell: | Coin Cell, Pouch Cell, Cylindrical Cell |
| Input: | AC 220V | Power: | 120W |
| Highlight: | 8 Channels Battery Charge Discharge Tester,CE certified Battery Charge Discharge Tester,Battery Cell Grading Machine 5V |
||
Product Description
8 Channels 5V 3A 6A Lithium Ion Battery Charge Discharge Regenerative Cell Tester Grading Machine for Cylindrical Cell
Cell Grading Machine Features
1. Detect the voltage of each battery in real time. When charging, charge with constant current first. When the battery voltage reaches the set value, it will smoothly switch to constant voltage charging. When the set time or current termination conditions are met, the charging is finished. In constant current discharge, when the battery voltage is lower than the set value, the discharge will end and the corresponding battery indicator light will be on.
2. It has the function of power-off protection, and can continue to run after receiving the original work flow.
3. The power tube is 50N06, which is suitable for batteries with lower discharge voltage, such as lithium iron phosphate battery.
4. The upper computer can set 32 working step parameters and 256 cycles, and each upper computer can be connected with 1-10 sets of single-chip microcomputer system (less than 5 sets are recommended).
Cell Grading Machine Description
XW-5V3A-8 is a CE certified 8 channel battery analyzing system for Li-ion, LiFePO3, Ni-MH, Ni-Cd, and Lead acid battery packs with up to 5V and 3A/6A/10A/20A per channel. The hardware bases on network communication design and software combines a DC Internal Resistance Analysis function when doing cycle charging/discharging, which ensures a stable connection and high integration testing platform. The system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc. This battery analyzer is designed according to the international standard: each channel has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled by user. With plug-and-play module design, user can freely remove and add module units without interrupting other units.
Cell Grading Machine Parameters

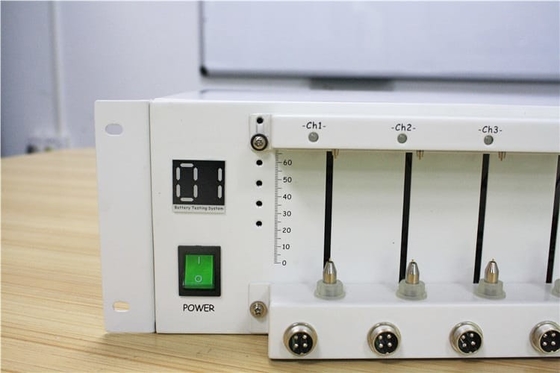

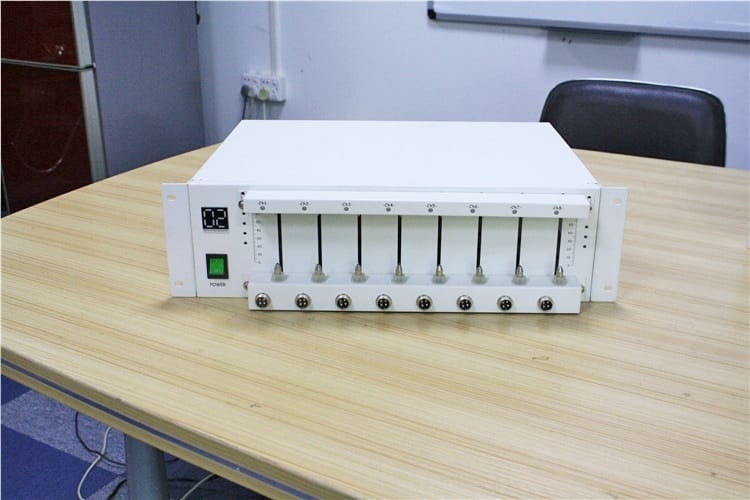

Cell Grading Machine Detail
