80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-5V10A-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 500-600/pcs |
| Packaging Details: | Carton, Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Total Channels: | 80 | Current: | 10A |
|---|---|---|---|
| Voltage: | 5V | Support Cell: | Coin Cell, Pouch Cell, Cylindrical Cell |
| Input: | AC 220V | Power: | 120W |
| Highlight: | Prismatic Cell Battery Capacity Grading Machine,80Channel Battery Capacity Grading Machine,Prismatic Cell Battery Charge Discharge Machine |
||
Product Description

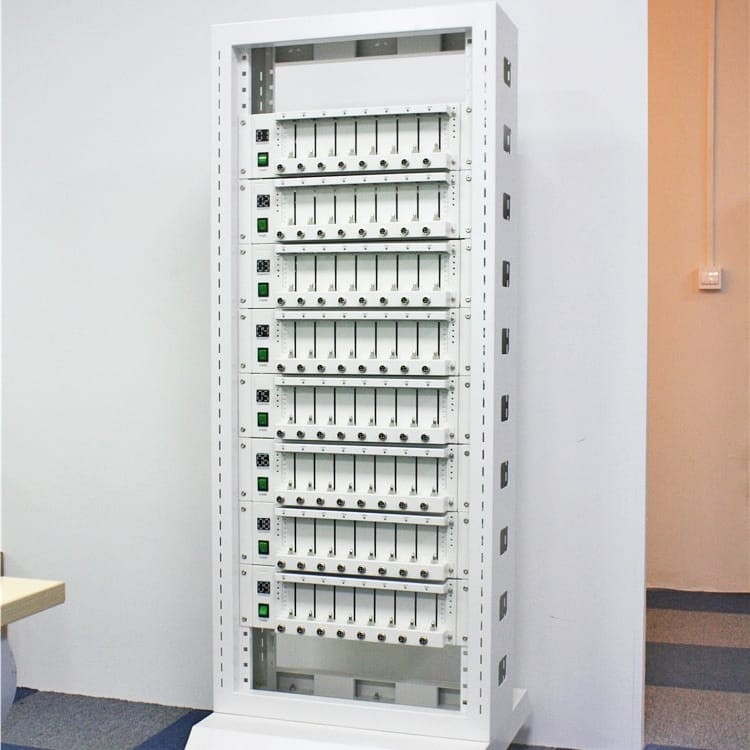

5V 10A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine
The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a fixture and a board for placing the fixture, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single-chip microcomputer and a control panel.
Supporting Software Functions
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;
F) Set operator authority and operate in different levels;
Display charge discharge curve and cycle chart;
Cell Grading Machine Parameters

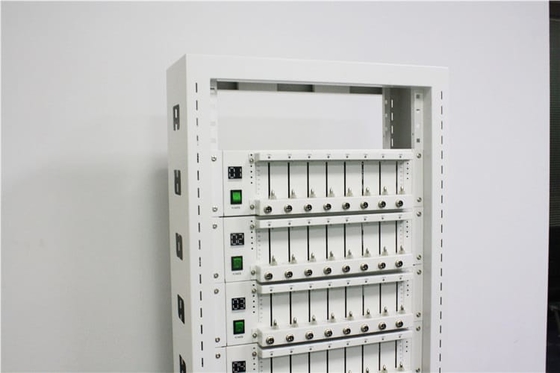

Cell Grading Machine Detail
