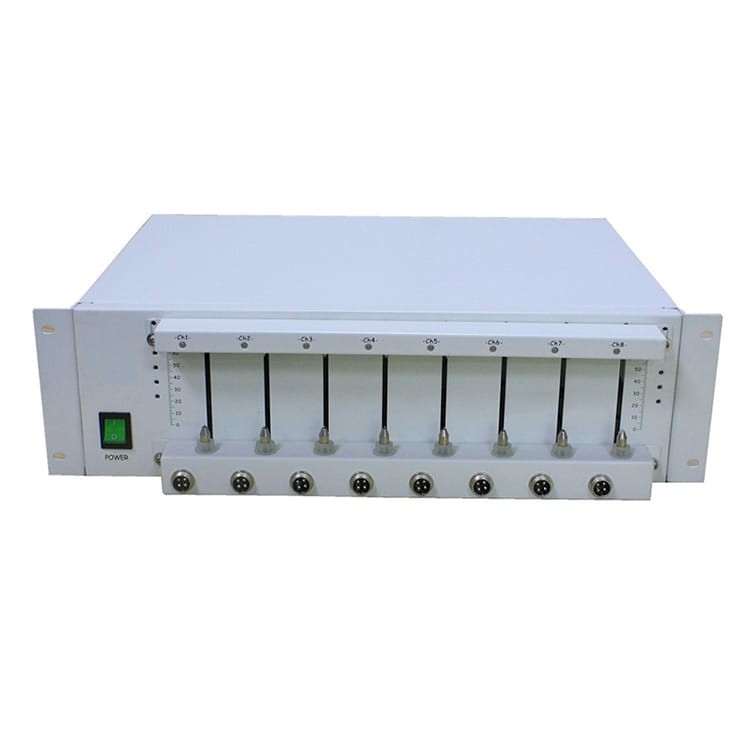

8 Channel Battery Cell Grading Machine For Coin Cell Pouch Cell Cylindrical Battery

Brand Name:	XWELL
Model Number:	XW-5V3A-8
MOQ:	1pcs
Price:	USD 500-600/pcs
Packaging Details:	Carton, Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Channels:

8 Channels

Voltage:

Current:

Support Cell:

Coin Cell, Pouch Cell, Cylindrical Cell

Input:

AC 220V

Power:

Supply Ability:

100 pcs per month

Highlight:

8 channel battery analyzing system

120W Battery Cell Grading Machine

Coin Pouch Battery Cell Grading Machine

Product Description

8 Channel Battery Tester and Grading Machine for Coin Cell Battery and Pouch Cell and Cylindrical Battery

Cell Grading Machine Description

XW-5V3A-8 is a CE certified 8 channel battery analyzing system for Li-ion, LiFePO3, Ni-MH, Ni-Cd, and Lead acid battery packs with up to 5V and 3A per channel. The hardware bases on network communication design and software combines a DC Internal Resistance Analysis function when doing cycle charging/discharging, which ensures a stable connection and high integration testing platform. The system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc. This battery analyzer is designed according to the international standard: each channel has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled by user. With plug-and-play module design, user can freely remove and add module units without interrupting other units.

Cell Grading Machine Features

1. Battery electrical performance test and safety performance test
2. Charging and discharging cycle life test
3. Battery charging and discharging performance test
4. DC internal resistance test
5. Overcharge and overdischarge rate tolerance test
6. Battery performance test at different temperatures
7. Battery self discharge life test

Cell Grading Machine Parameters

No	Item	Parameter
1	Channels	8 channels
2	Machine size	500mm×400mm×250mm
3	Box color	Default beige (can be customized)
4	Suitable cell type	coin cell, pouch cell and cylindrical cell
5	Clamp type	upper positive and lower negative, fixture (tip/flat/two pieces) optional
6	Clamp spacing	40mm
7	Support battery height	adjustable within 100mm
8	Working power supply	AC220V±10%, 50HZ
9	Working power consumption	≤120KW
10	Working environment	temperature 0～40℃, relative humidity ≤80%
11	Cooling method	fan
12	Voltage measurement range	0～5V
13	Battery voltage range	charging 0～4.5V; discharging 4.5～2V
14	Constant voltage range	2.5～4.5V
15	Voltage accuracy	±(1‰ reading+1‰ full scale)
16	Voltage resolution	1mV
17	Voltage stability	≤1‰
18	Current range	charging 10mA～3A; discharging 10mA～3A
19	Current accuracy	±(1‰ reading+1‰ full scale)
20	Current resolution	1mA
21	Current stability	≤1‰

Cell Grading Machine Detail
