3P Lithium Battery Spot Welding Machine Battery Spot Welder For 18650 26650 32650 21700
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MNT8000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1000 - 3000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model No.: | MD-MNT8000 | Welding Thickness: | 0.25mm |
|---|---|---|---|
| Machine Type: | Gantry Transistor Type | Max Welding Current: | 8000A |
| Input: | AC 380V 3P | Nickel Thickness: | Pure Nicel≦0.2mm,slot Nickel≦0.4mm |
| Cooling Method: | Forced AIi Cooling | Welding Time: | 0-99ms |
| Weight: | 60KG | Dimension: | 800L X 600W X 1200Hmm |
| Highlight: | 3P Lithium Battery Spot Welding Machine,32650 Battery Spot Welder,Gantry Transistor Battery Spot Welder |
||
Product Description
Gantry Transistor Lithium Battery Spot Welding Machine Battery Spot Welder for 18650 26650 32650 21700
Spot Welding Machine Features
1. Adopts medium frequency DC inverter to control the welding power, which can realize small-scale, high-efficiency and high-output welding.
2. With the function of setting and detection of welding current continuously and switching between the 64 stored welding parameters.
3. Real-time control the welding quality and ensure the welding quality.
4. Current slowing up and down, also output 2 sections current.
5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not. It is suitable for welding automation instruments.
6. The welding current increases with the power on time to ensure the welding results.
Spot Welding Machine Description
This series machine adopts transistor to control the discharge power supply. Because it is welded by using the energy stored in the capacitor in advance, small power supply equipment can also be used. It is controlled by 32-bit microprocessor, with digital energy setting and precise control of welding energy. Its alarm function can effectively detect the welding current, making the welding results stronger and more beautiful, anti-interference design and reliable operation. The unique and excellent characteristics of double pulse welding can provide better welding quality pulse. Different energy is used to discharge the welded object twice continuously. The first pulse removes the dirt on the solder surface and makes the electrode better align with the base surface. The second pulse welds the base material, so the welding is firm and beautiful, with less spatter and safe operation.
Product Specification
| Input power supply | AC 380V 3P |
| Max.Current | 8000A |
| Controlling Frequency | 4KHz |
| Nickel Thickness | Pure Nicel≦0.2mm,slot Nickel≦0.4mm |
| Cooling Method | Forced AIi Cooling |
| welding Time | 0-99ms |
| Weight | 60KG |
| Dimension | 800L x 600W x 1200Hmm |
Spot Welding Machine Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

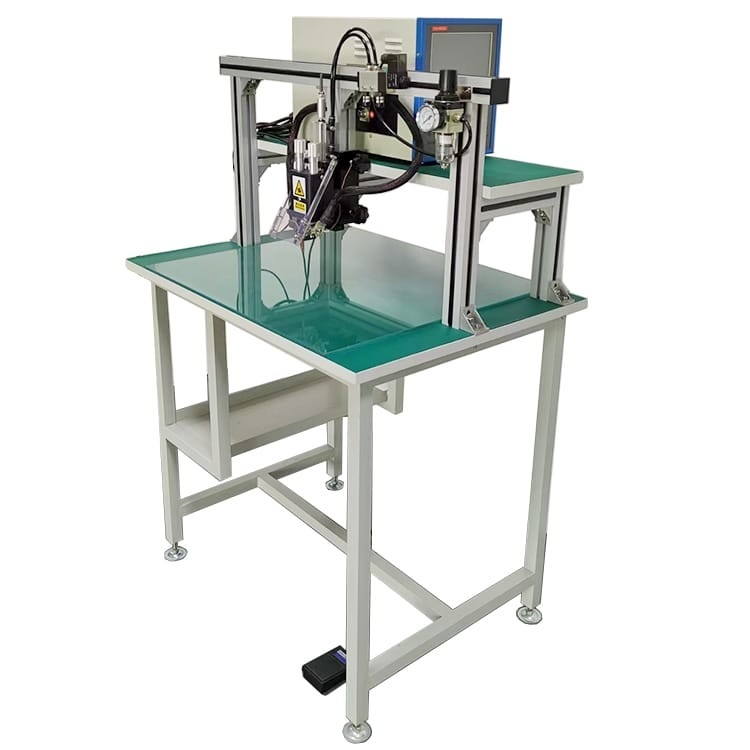

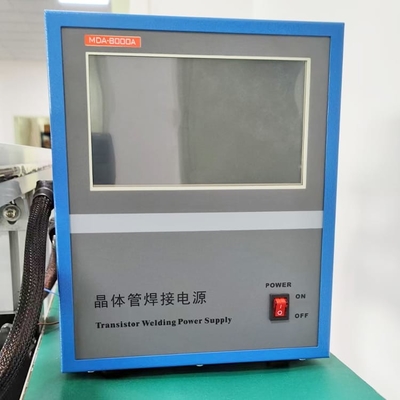

Spot Welding Machine Detail
