Manual Lithium Cylindrical Battery Spot Welding Machine Gantry Transistor Type AC 380V 3P
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MNT8000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1000 - 3000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Number: | MD-MNT8000 | Machine Type: | Gantry Transistor |
|---|---|---|---|
| Welding Current: | 8000A | Input: | AC 380V 3P |
| Controlling Frequency: | 4KHz | Nickel Thickness: | Pure Nicel≦0.2mm,slot Nickel≦0.4mm |
| Cooling Method: | Forced AIi Cooling | Welding Time: | 0-99ms |
| Weight: | 60KG | Dimension: | 800L X 600W X 1200Hmm |
| Highlight: | AC 380V Battery Spot Welding Machine,4KHz Battery Spot Welding Machine,Gantry Lithium Battery Spot Welding Machine |
||
Product Description
Gantry Type Manual Lithium Cylindrical Battery Spot Welding Machine With Transistor Type Power Source
This series machine adopts transistor to control the discharge power supply. Because it is welded by using the energy stored in the capacitor in advance, small power supply equipment can also be used. It is controlled by 32-bit microprocessor, with digital energy setting and precise control of welding energy. Its alarm function can effectively detect the welding current, making the welding results stronger and more beautiful, anti-interference design and reliable operation. The unique and excellent characteristics of double pulse welding can provide better welding quality pulse. Different energy is used to discharge the welded object twice continuously. The first pulse removes the dirt on the solder surface and makes the electrode better align with the base surface. The second pulse welds the base material, so the welding is firm and beautiful, with less spatter and safe operation.
Spot Welding Machine Features
1. Panel Microcomputer control, high precision welding machine with plc display panel.
2. Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
3. Industrial circuit design, safe and reliable.
Product Specification
| Input power supply | AC 380V 3P |
| Max.Current | 8000A |
| Controlling Frequency | 4KHz |
| Nickel Thickness | Pure Nicel≦0.2mm,slot Nickel≦0.4mm |
| Cooling Method | Forced AIi Cooling |
| welding Time | 0-99ms |
| Weight | 60KG |
| Dimension | 800L x 600W x 1200Hmm |
Spot Welding Machine Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

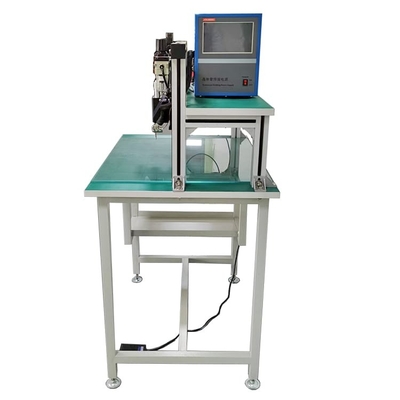

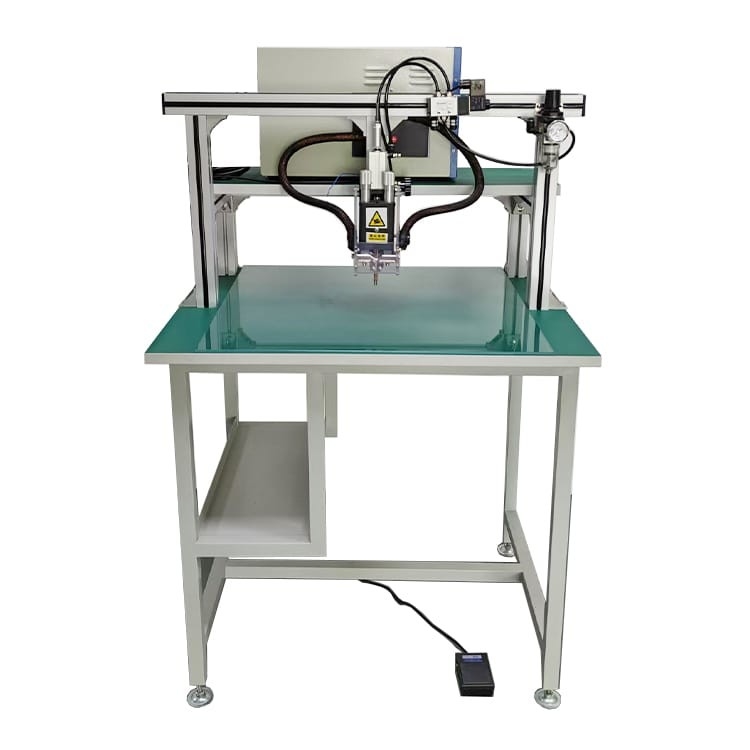

Spot Welding Machine Detail
