Lithium Battery Spot Welding Machine

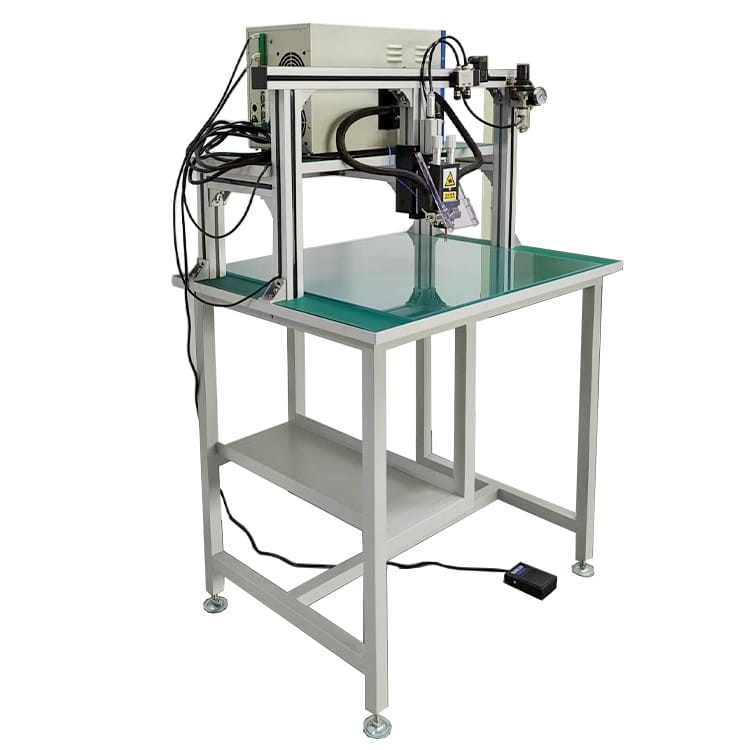

8000A Battery Pack Welding Machine Gantry Transistor Type For 18650 26650 32650

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

8000A Battery Pack Welding Machine Gantry Transistor Type For 18650 26650 32650

Brand Name:	XWELL
Model Number:	MD-MNT8000
MOQ:	1pcs
Price:	USD 1000 - 3000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model Number:

MD-MNT8000

Type:

Gantry Transistor

Power Supply:

AC 380V 3P

Current:

8000A

Controlling Frequency:

Nickel Thickness:

Pure Nicel≦0.2mm,slot Nickel≦0.4mm

Cooling Method:

Forced AIi Cooling

Welding Time:

0-99ms

Weight:

Dimension:

800L X 600W X 1200Hmm

Supply Ability:

100 pcs per month

Highlight:

32650 Battery Pack Welding Machine

Gantry Transistor Battery Pack Welding Machine

PLC battery Spot Welding Machine

Product Description

8000A Battery Pack Welding Machine Inverter Gantry Spot Welder With Transistor Power Source

This kind battery spot welder is mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.

The equipment includes power source, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.

Spot Welding Machine Features

1. panel Microcomputer control, high precision welding machine with plc display panel.
2. Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
3. Industrial circuit design, safe and reliable.

Product Specification

Input power supply	AC 380 v / + 50 hz
Max.Current	8000A
Controlling Frequency	4KHz
Nickel Thickness	Pure Nicel≦0.2mm,slot Nickel≦0.4mm
Cooling Method	Forced AIi Cooling
welding Time	0-99ms
Weight	60KG
Dimension	800L x 600W x 1200Hmm

Spot Welding Machine Application

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

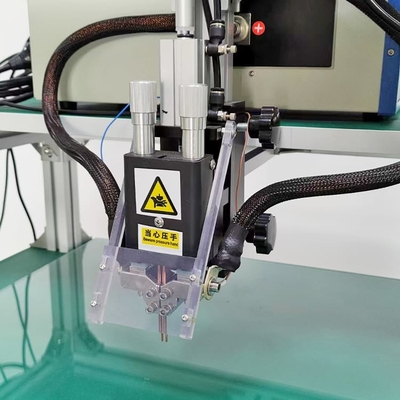

Spot Welding Machine Detail

8000A Battery Pack Welding Machine Gantry Transistor Type For 18650 26650 32650 0
