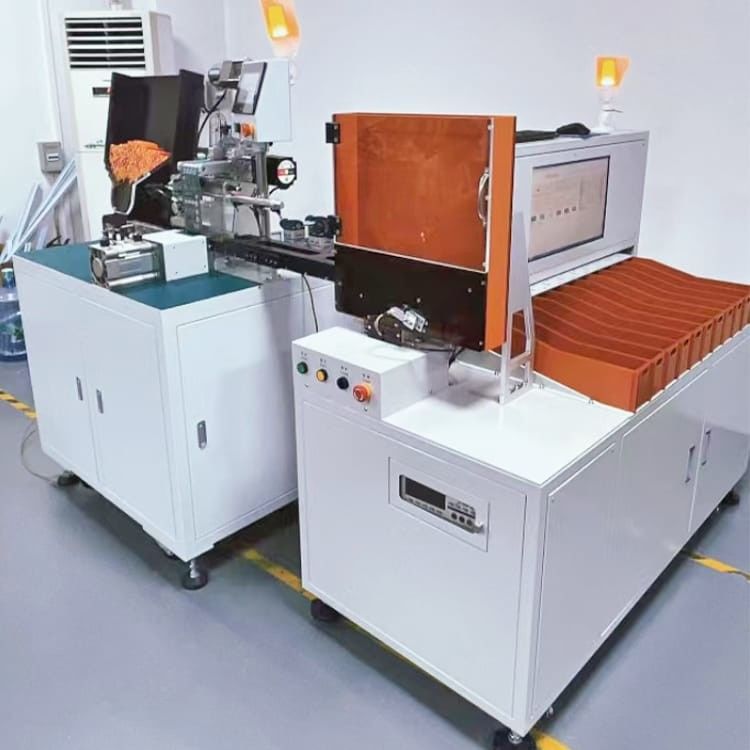

18650 Battery Label Sticking Machine Connecting With Cylindrical Battery Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 12000-15000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Sticking: | 2-4 Channel | Sorting: | 5-21 Channel |
|---|---|---|---|
| Sticking Speed: | 4500pcs/hour, Single Pad 4pcs | Sorting Speed: | 4500 Pcs/hour |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | 18650 Battery Label Sticking Machine,0.8Mpa Battery Label Sticking Machine,Cylindrical Battery automatic label sticking machine |
||
Product Description
Label Sticking Machine Connecting With Cylindrical Battery Sorting Machine For Battery Pack Assembly
The cylindrical 18650 battery automatic sticker sorting machine is a test sorting device for checking the internal resistance and voltage of the cylindrical battery after the surface mat, and comes with a high-precision internal resistance and voltage automatic test system. The internal resistance and voltage value set on the computer software accurately feed the battery to the specified gear position, and the system can realize 11 sorting (10 test stations, 11 sorting levels) sorting. The overall design efficiency of this equipment is about 4,500-5000 batteries per hour, and the structure design is simple and generous, and the performance is stable. In the market, it has been a cost-effective sticker and sorting combination integrated equipment. The two machines are loaded and received in the same direction. They can be combined with single operation or separately.
Battery Sticking and Sorting Machine Features
1. Professional control system, stable and reliable drive subdivision high speed.
2. The device can send the battery to the specified gear according to the set internal resistance voltage value.
3. Special knife mold anti-adhesive air die automatically punches the surface pad and accurately sticks to the battery end face.
4. The average sorting is 4500PCS/hour with high stability.
Battery Sticking and Sorting Machine Mechanical Structure
1) The equipment has compact structure design, beautiful appearance and small space occupation.
2) Manual whole-box feeding of equipment.
3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
4) The equipment is equipped with universal movable casters, which makes it easy to move and move.
Sticking Machine Specification
| Input gas source | 0.5-0.8Mpa |
| Function style | Stepper drive with pneumatic |
|
Input voltage
|
AC220V |
| Sticker matrials | Barley paper or PVC |
| Sticker matrials size | Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM |
| Adaptable battery cell | 18650 battery |
| Power | Electric power or pneumatic |
| Control instrument | 7.5feet contact screen,PLC programming machine and step motor |
| Electrodes to the body distance |
100 mm (Scalable adjustable) |
| Producivity | 4000pcs/h; singal 4pcs |
| External dimensions | 1.2M*0.9M*1.7M |
| Power |
<3KW
|
| Sticker efficiency | >80PPM |
| Weight | 200kg |
| Sticker Frame Material | High quality thick cold rolled steel sheet, aluminium material |
| Indoor temperature | -30℃-50℃ |
| Indoor humidity |
Above 55%
|
Sorting Machine Specification
| Power | 1.6KW, 220V AC input, 50Hz(customized) |
| V Accuracy | 0.00001V |
| I Accuracy | 0.01m Ω |
| Channel | OK 10 NG 1 |
| IR Tester | HK3561 |
| Control device | Computer software, 3-axis PLC programmer |
| Efficiency | 4000PCS/H |
| Warranty | 12 Months |
Sticking and Sorting Machine Technological Process:
Filling the whole box of battery→Motor rotation→The cylinder pushes the battery out→Belt transport battery→Battery launch→Battery entering conveyor belt→Stop cylinder released→Lead screw drives cylinder battery team→The battery is full of four lead screws to shift the battery→Under cylinder pressure→Move the battery to the highland barley paper position→Secondary positioning of cylinder to battery→Barley paper pasted on stepper motor→Waste recovery→Finished battery to discharge chute→The cylinder pushes the battery onto the sorter belt→Battery launch→Test battery→After the battery is full, the manipulator grabs the battery→Battery sorting→Manual packing
