Highland Barley Paper Battery Cell Sticking Machine Eleven Grade Battery Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Sticking Number: | 2-4 | Sorting Number: | 5-21 |
|---|---|---|---|
| Sticking Speed: | 4000pcs/hour, Single Pad 4pcs | Sorting Speed: | 3800 Pcs/hour |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | Barley Paper Battery Cell Sticking Machine,Battery Cell Sticking Machine 0.8Mpa,Eleven Grade Battery Sorting Machine |
||
Product Description

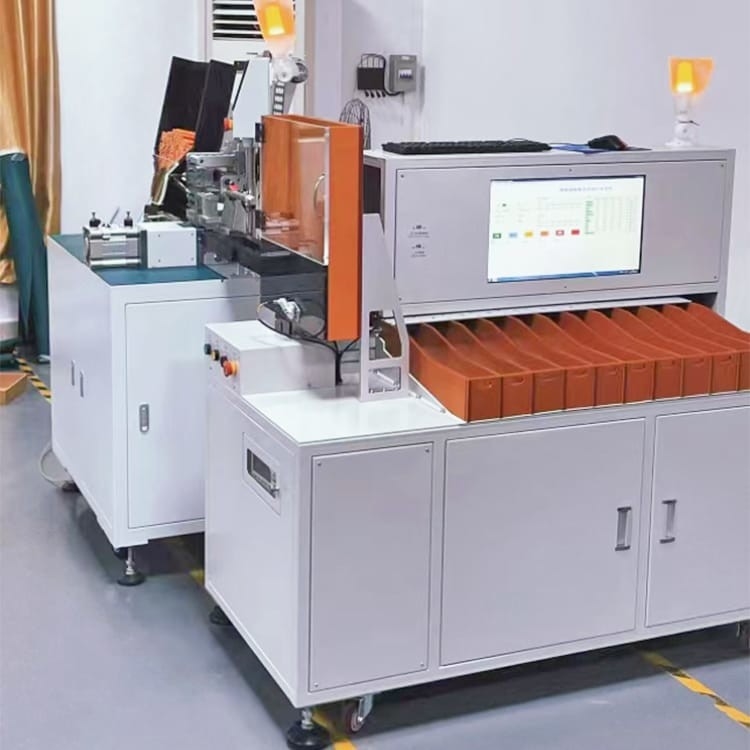

Automatically Pastes Highland Barley Paper And Connects Eleven Grade Sorting Machine
Battery Sticking and Sorting Machine Features
1. This equipment is a kind of automatic device for detecting and sorting cylindrical battery by PLC after first sticking highland barley paper.
2. The equipment adopts PLC computer and PLC detection and sorting, which can complete about 4000 cylindrical electrolytic cells per hour.
3. Dual machine integrated, high degree of automation, reduce intermediate links, save manpower.
4. The operation is simple and easy to learn, without professional personnel.
5. HD LCD touch screen, man-machine interaction interface more convenient operation.
6. Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design, stable performance, greatly extended service life.
7. Simple and generous mechanical structure design, stable system performance. This is a relatively high cost performance on the market at present.
8. The equipment is made of high quality thick cold rolled metal plate and aluminum frame.
9. The equipment is equipped with universal movable casters, which makes it easy to move and carry.
Battery Sticking and Sorting Machine Mechanical Structure
1) The equipment has compact structure design, beautiful appearance and small space occupation.
2) Manual whole-box feeding of equipment.
3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
4) The equipment is equipped with universal movable casters, which makes it easy to move and move.
Sticking Machine Specification
| Input gas source | 0.5-0.8Mpa |
| Function style | Stepper drive with pneumatic |
|
Input voltage
|
AC220V |
| Sticker matrials | Barley paper or PVC |
| Sticker matrials size | Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM |
| Adaptable battery cell | 18650 battery |
| Power | Electric power or pneumatic |
| Control instrument | 7.5feet contact screen,PLC programming machine and step motor |
| Electrodes to the body distance |
100 mm (Scalable adjustable) |
| Producivity | 4000pcs/h; singal 4pcs |
| External dimensions | 1.2M*0.9M*1.7M |
| Power |
<3KW
|
| Sticker efficiency | >80PPM |
| Weight | 200kg |
| Sticker Frame Material | High quality thick cold rolled steel sheet, aluminium material |
| Indoor temperature | -30℃-50℃ |
| Indoor humidity |
Above 55%
|
Sorting Machine Specification
| Power | 1.6KW, 220V AC input, 50Hz(customized) |
| V Accuracy | 0.00001V |
| I Accuracy | 0.01m Ω |
| Channel | OK 10 NG 1 |
| IR Tester | HK3561 |
| Control device | Computer software, 3-axis PLC programmer |
| Efficiency | 4000PCS/H |
| Warranty | 12 Months |
Sticking and Sorting Machine Technological Process:
Filling the whole box of battery→Motor rotation→The cylinder pushes the battery out→Belt transport battery→Battery launch→Battery entering conveyor belt→Stop cylinder released→Lead screw drives cylinder battery team→The battery is full of four lead screws to shift the battery→Under cylinder pressure→Move the battery to the highland barley paper position→Secondary positioning of cylinder to battery→Barley paper pasted on stepper motor→Waste recovery→Finished battery to discharge chute→The cylinder pushes the battery onto the sorter belt→Battery launch→Test battery→After the battery is full, the manipulator grabs the battery→Battery sorting→Manual packing
