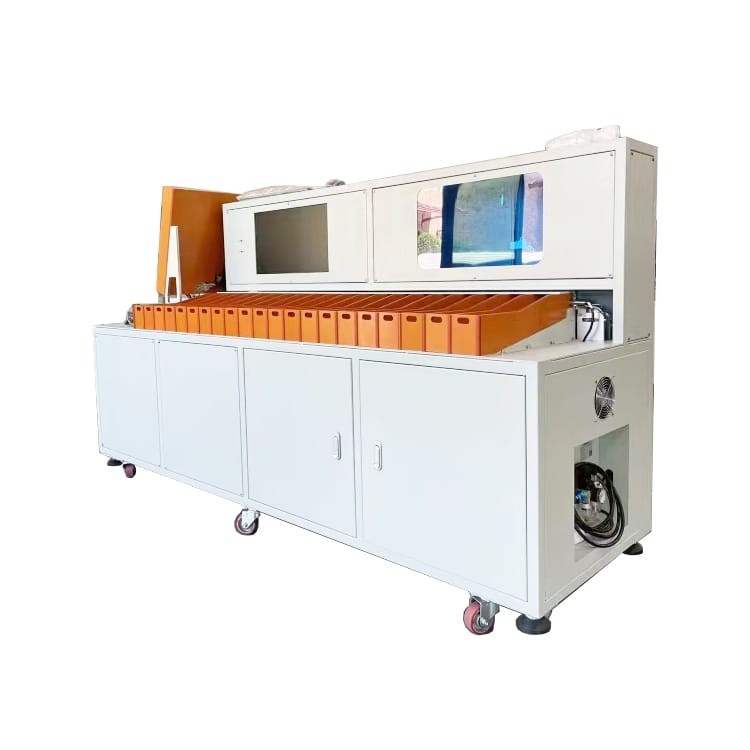

Automatic Cylindrical Battery Sorting Machine Integrated Collecting With PLC And PC
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channels: | 21 | Software: | Computer Software |
|---|---|---|---|
| Cell Type: | Cylindrical Cell | Speed: | 3000 Pcs/h |
| Voltage Supply: | 220V±10%/50Hz±10% | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | Tester: | HK3561 |
| Highlight: | Automatic Cylindrical Battery Sorting Machine,PLC Battery Sorting Machine |
||
Product Description
Automatic 21 Channel Cylindrical Battery Sorting And Collecting Machine With PLC And Computer
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on.
The maximum one-time grading is 21 grades.
Cell Sroting Machine Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
2. 21 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells.
3. Sort by cell's voltage and impedance up to 21 groups.
4. Automatic sorting control.
5. Fast sorting speed (80PPM).
6. Easy to refill cells during the process.
7. wheels design, easy to move the machine to any operating place.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Large size LCD screen/Touch screen |
| Battery Types |
Cylindrical Cell (18650 26650 21700 32650) |
| Receiving Channel | 21 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sroting Machine Operation
Structure of Sorter:
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
5) The equipment is equipped with universal movable casters, which can move easily when shifting.
