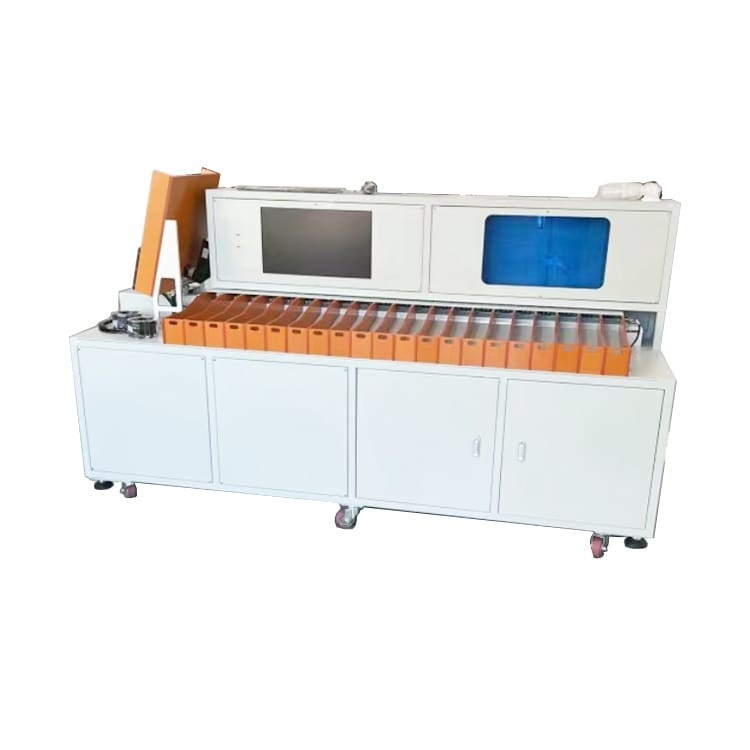

21 Channel Cylindrical Battery Sorting Machine For Assembly 18650 26650 21700 32650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channel QTY: | 21 Channels | User Interface: | Computer Software |
|---|---|---|---|
| Cell Type: | 18650 26650 21700 32650 | Efficiency: | 3000 Pcs/h |
| Voltage Supply: | 220V±10%/50Hz±10% | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | Tester: | HK3561 |
| Highlight: | 32650 Battery Sorting Machine,integrated collecting Battery Sorting Machine,21700 Battery Cell Sorting Machine |
||
Product Description
21 Channel Cylindrical Battery Sorting Machine For High Productivity Battery Pack Assembly 18650 26650 21700 32650
The integrated sorting and collecting machine is to add the automatic collecting function on the basis of the sorting machine, which greatly saves the manual collecting time.
Cell Sroting Machine Features
1. Compact and reasonable equipment structure, beautiful appearance,small volume.
2. Simple equipment operation,workerscan easily learning.
3. The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and battery sorting. 4. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work effienciency, saving manpower, good product perfermance.
5. Equipment materials are made of high quallity thick cold - rolled sheet metal, aluminum frame.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Large size LCD screen/Touch screen |
| Battery Types |
Cylindrical Cell (18650 26650 21700 32650) |
| Receiving Channel | 21 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sroting Machine Operation
Structure of Sorter:
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
5) The equipment is equipped with universal movable casters, which can move easily when shifting.
