128 Channel 5V 6A 10A 20A Battery Cell Capacity Grading Machine For Prismatic Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900-11000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Machine Name: | Cell Grading Machine | Cell Type: | Prismatic Cell |
|---|---|---|---|
| Usage: | Cell Charge And Discharge Testing | Constant Voltage Range: | 2.5V-4.5V |
| Heat Dissipation: | To Enter The Air Naturally And Exhaust The Air Upward | Voltage Measuring Range: | 0-5V, 1MV Resolution |
| Battery Voltage Range: | Charge 0-4.5V: Discharge 4.5-2V | Voltage Accuracy: | ±(1‰ Reading +1‰ Full) |
| Control Mode: | Computer Connection Equipment Work, FCL Control | Communication Mode: | RS485 Baud Rate 57,600 |
| Highlight: | FCL Battery Cell Capacity Grading Machine,5V Battery Cell Capacity Grading Machine,128 Channel Battery Cell Grading Machine |
||
Product Description

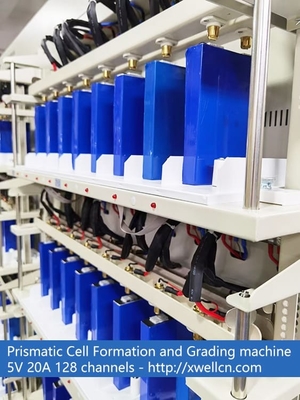

128 Channel 5V 6A 10A 20A Battery Cell Capacity Grading Machine For Prismatic Cell
Battery Cell Capacity Grading Machine Product Description
Battery cell tester machine is used when the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capacity testing.
Battery Cell Capacity Grading Machine Product Features
1.Scope of application: Capacity and detection of chemical components of lithium polymer, lithium ion, ni-MH and ni-Cd batteries.
2.Different clamps.
3.Current Range:10A 20A 30A for options
4.Channels:64 96 128 channels for options
2.Different clamps.
3.Current Range:10A 20A 30A for options
4.Channels:64 96 128 channels for options
Battery Cell Capacity Grading Machine Product Specification
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||
XWELL can provide different fixtures for different types of cells
