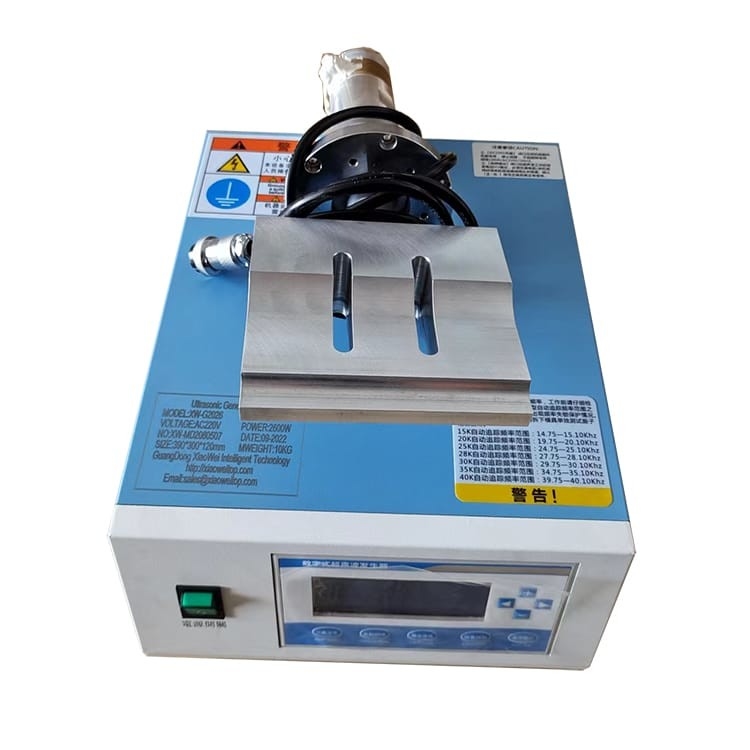

Digital Generator Ultrasonic Plastic Welding Machine 0.4MPa-0.6MPa Touch Screen With Horn
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-2030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Name: | Ultrasonic Plastic Welding Machine | Frequency: | 20KHz |
|---|---|---|---|
| Control Method: | Time & Energy | Welding Material: | Plastic, PVC |
| Welding Stroke: | 30mm | Welding Time: | 0.1-1.5S |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Usage: | For Plastic Welding |
| Highlight: | Battery ultrasonic plastic welding machine,0.6MPa ultrasonic plastic welding machine,Touch Screen ultrasonic plastic welder |
||
Product Description
Automatic Ultrasonic Digital 20khz Generators Welder Plastic Weld Spot Welders Plastic Welding Machine With Horn
Intelligent ultrasonic generator, digital circuit design, automatic frequency scanning, no need to manually adjust the frequency; for various specifications of ultrasonic welding transducer and tool head.
Ultrasonic processing transducer stack is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid state weld. It is commonly used for plastics, and especially for joining dissimilar. materials, embossing etc. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.
Features 1:
1. Full set ultrasonic welding machines have passed CE/FCC certification.
2. Related documents are provided to support Customs clearance.
3. Ultrasonic system are in stock. The delivery date meet your soonest requirement.
4. Product quality can be under control in our factory.
Features 2:
Analog generator can adjust the frequency
Time mode
Stable performance
Features 3:
Digital generator can be auto tracking
Time and energy mode
With touch screen, easy to be operated
Features 4:
Simple operation
Convenient maintenance
Features 5:
Mold Customization: Specialized in ultrasonic welding since 1993,
with rich experience in R&D and production. Mold( Horn+Fixture)
can be customized as per different demands for different applications.
|
Model
|
XW-4010
|
XW-2030
|
XW-2040
|
XW-2050
|
XW-2080
|
|
Ultrasonic frequency
|
20KHz 40KHz
|
||||
|
Input
|
AC220V/50Hz
|
||||
|
Ultrasonic power
|
1000W
|
3000W
|
4000W
|
5000W
|
8000W
|
|
Air pressue
|
0.4MPa~0.6MPa
|
||||
|
Control
|
Time and energy
|
||||
|
Welding stroke
|
30mm
|
||||
|
Structure dimension
|
440*230*400mm
|
||||
|
Generator dimension
|
450*435*140mm
|
||||
|
Weight
|
60kg
|
65kg
|
65kg
|
70kg
|
100kg
|
